SAFETY AND PERFORMANCE
Durable and Strong
High-strength cab with Dana Axles and Cummins 3.8L engine built for tough conditions and reliable performance.
Safety First
Adaptable design with strong safety focus protects driver and cargo across various applications.
Versatile Performance
Adapts to diverse business requirements for maximum operational flexibility.
Engine Power
High-output diesel engines tackle tough jobs and heavy loads.
Warranty Protection
Comprehensive coverage protects your investment and business operations, with a 5-year/300,000km warranty included.
SPECIFICATION
Brand
DFAC
Model Code
CA9R-301J
Configuration
4x2
GVW (Gross Vehicle Weight)
7,500kg
Maximum Speed
90km/H
Gradeability
51%
Curb Weight
2,790kg
Minimum Turning Radius
10.63m
Model
Cummins ISF3.8s4R154
Type
Diesel, in-line 4 cyl, Turbo Intercooler
Fuel Injection System
ECU Control Common Rail Injection
Displacement
3,760cc
Max. Output
115kW / 154PS @ 2,600rpm
Max. Torque
500Nm @ 1,200rpm
Emission Standards
Euro IV with EGR, DOC, POC
Form
Diaphragm Spring
Diameter
Φ350mm
Model
(FAST-C6J55T) 6 Speed MT
Gear Ratio
1st
6.180
2nd
3.330
3rd
2.080
4th
1.390
5th
1.000
6th
0.780
Reverse
5.570
Cross-sectional Dimensions (mm)
192 x 65 x 6
Width
800mm
Layer
Single Layer
Service Braking system
Dual-circuit Air brake
Front Brake
Drum
Rear Brake
Drum
Auxiliary Brake system
Exhaust Brake
ABS (Antilock Braking System)
Yes
Parking Brake
Mechanical internal-expanding, acting on rear wheels
Front
Maker
DANA
Type
Reversed Elliot, I-Beam
Capacity
2,900kg
Rear
Maker
DANA
Type
Full Floating, Pressed welding housing, Hypoid Gear
Capacity
5,700kg
Ratio
4.330

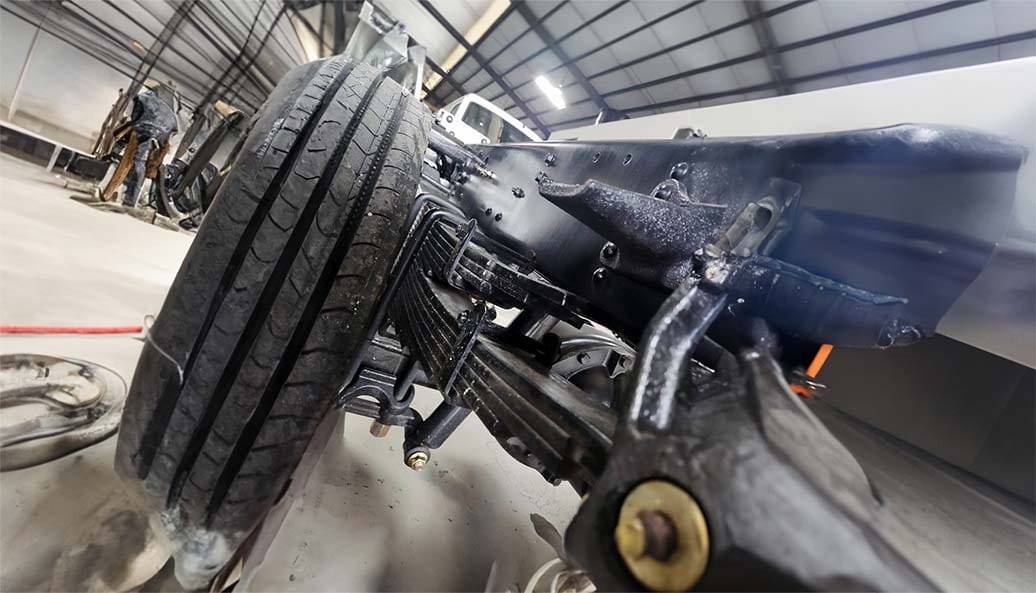

Front
Type
Multi Leaf Spring with Dual Acting Shock Absorber
Number of Springs
8
Rear
Type
Multi Leaf Spring with Dual Acting Shock Absorber
Number of Springs
10 main springs + 7 helper springs
Wheel Type
6 Stud Tubeless Tires
Wheel Size
215/75R17.5
Rim Size
6.00 x 17.5 Steel
Number of Tires
6 + 1
Cab Type
Single Row
Cab Width
2,030mm
Tilting
Mechanical Type
Steering
Recirculating ball with Hydraulic power assistance
Power Window
Yes
Central Locking
Yes
Battery
12V, 100AH x 2ps
Alternator
28V - 70A
Capacity
120L
Material
Aluminium
