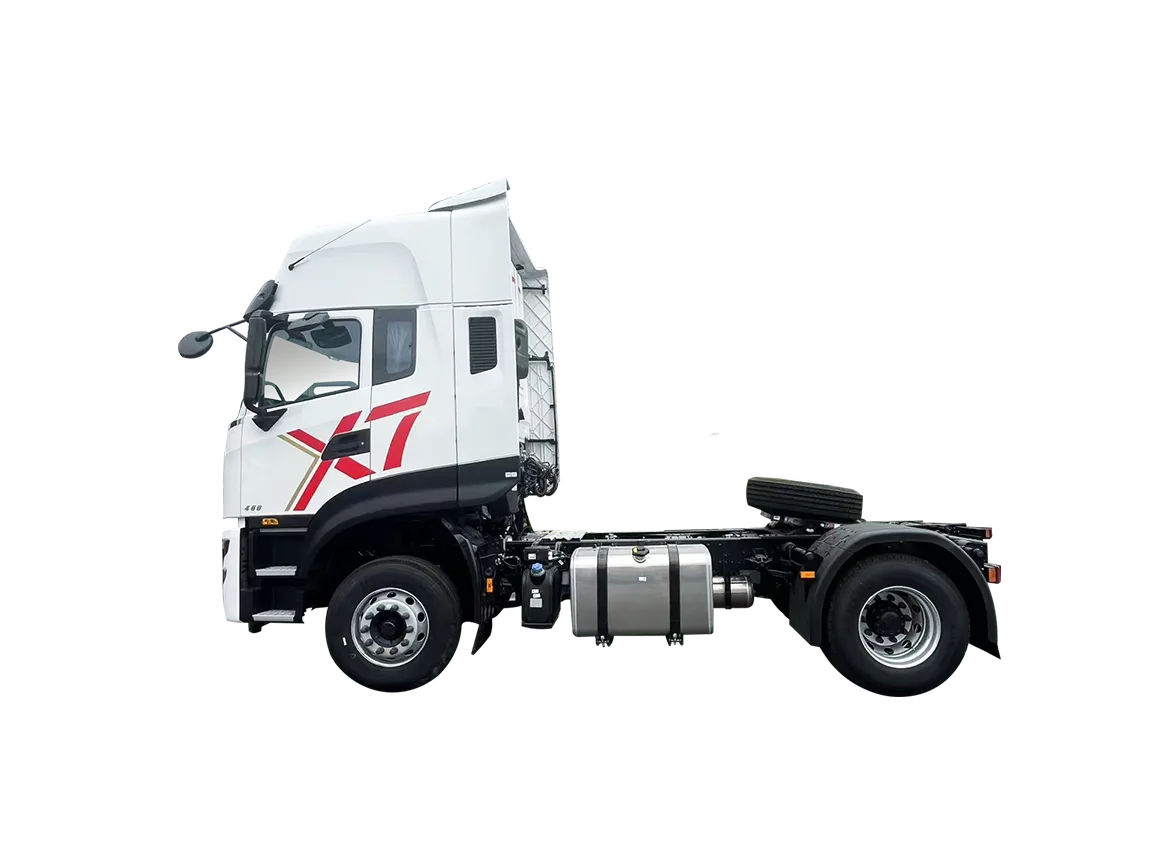

X7

Conquer Long-Hauls

Designed to go the distance, the X7 combines high horsepower, advanced safety tech,
and driver-first comfort – delivering strength, control, and reliability when it matters most.

Interior  Exterior  Safety and Performance Specification

INTERIOR

Thumbnail 2
16-Speed Automated Manual Transmission

Advanced AMT for smoother gear shifts, improved fuel economy, and reduced driver fatigue.

Thumbnail 2

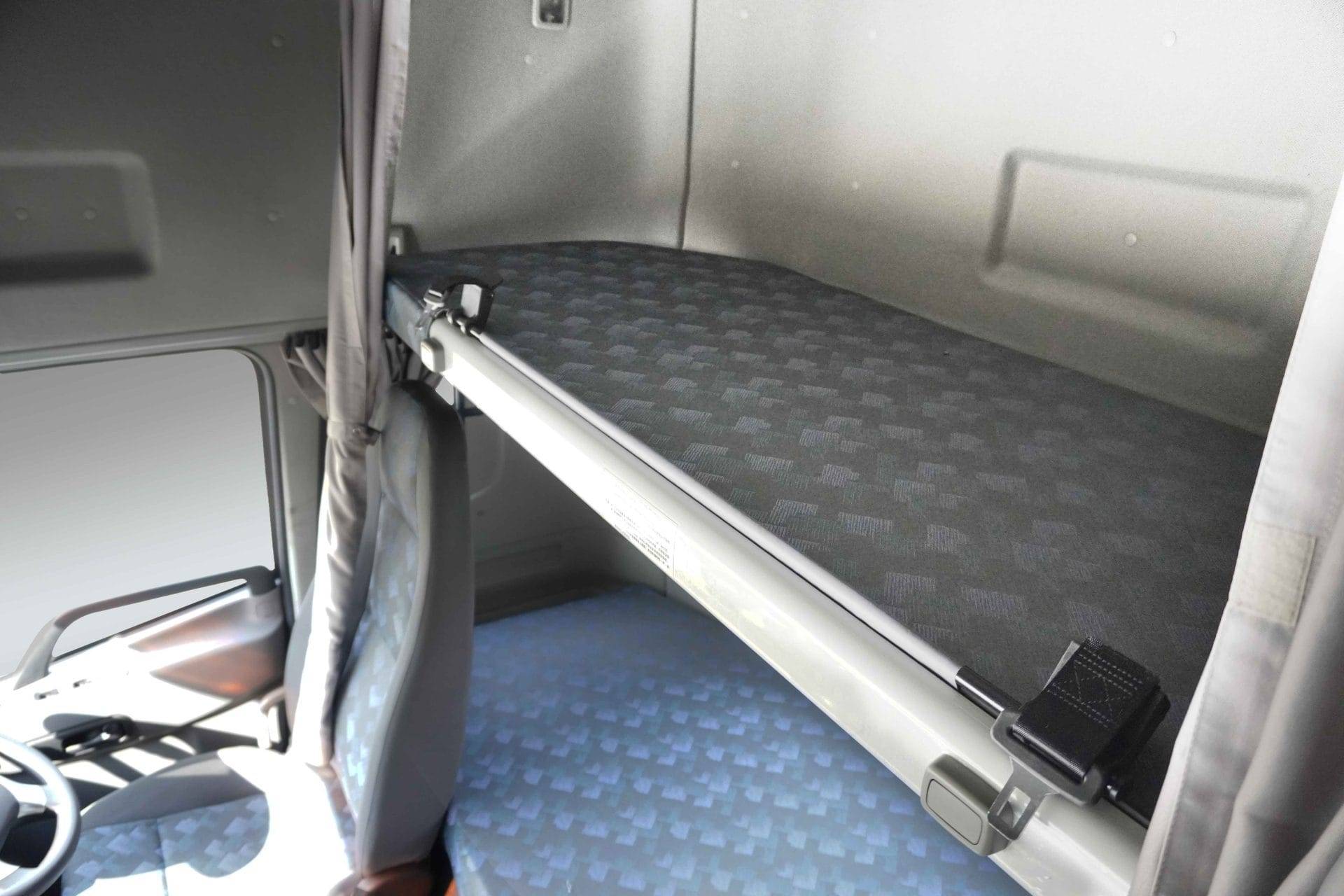

High-Roof Sleeper Cabin

Spacious 2-bunk cabin with full air suspension for comfort during long hauls.

Thumbnail 2
Comfortable Ride

Air-suspended cab and driver seat for reduced vibration and enhanced comfort on the road.

previous arrow
next arrow
Thumbnail 2
Thumbnail 2
Thumbnail 2
previous arrow
next arrow

EXTERIOR

Thumbnail 2

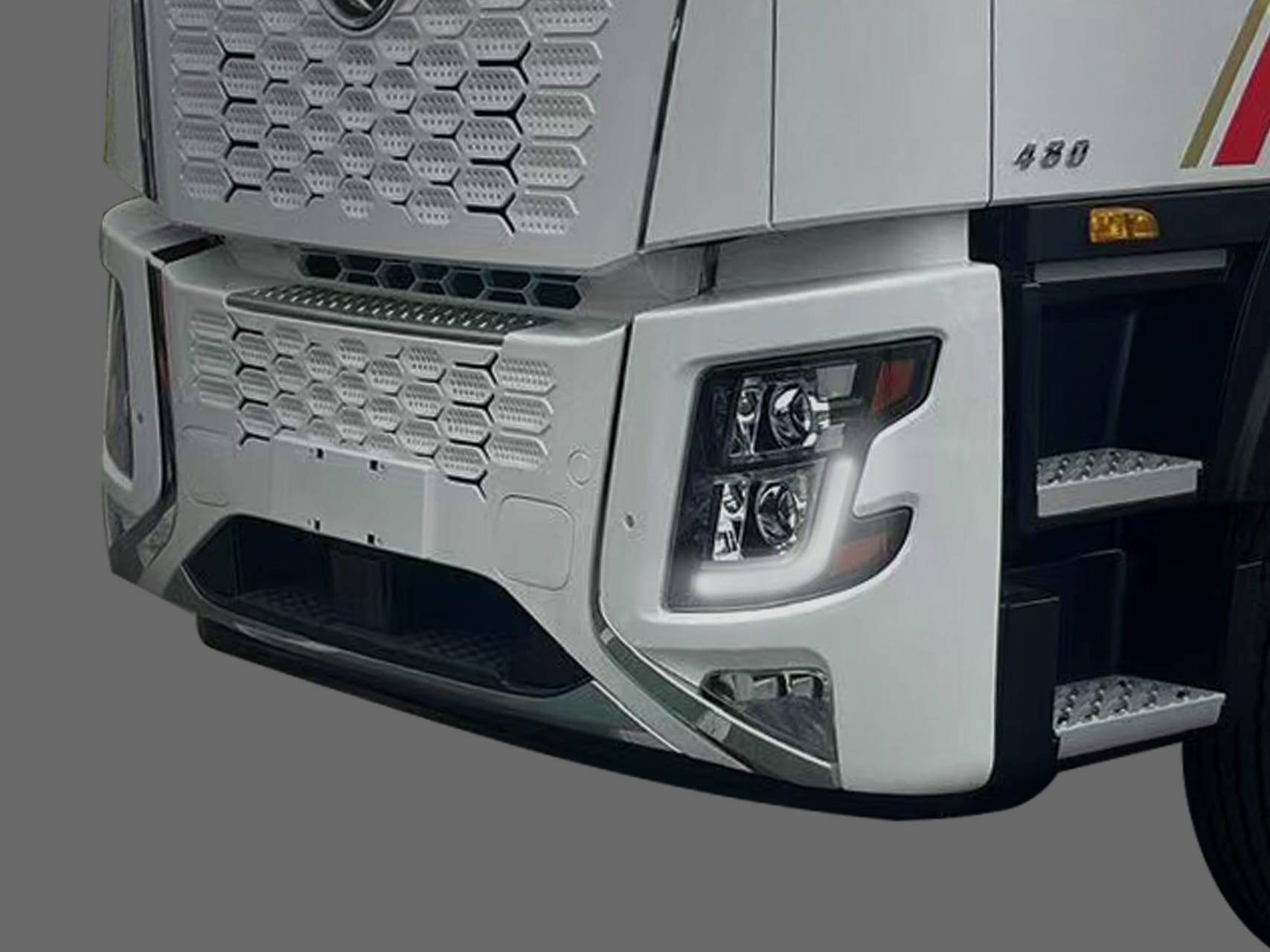

LED Lighting System

Vertically stacked daytime-running strips, projector beams, and square fog lamps offer energy efficient, enhanced visibility.

Thumbnail 2

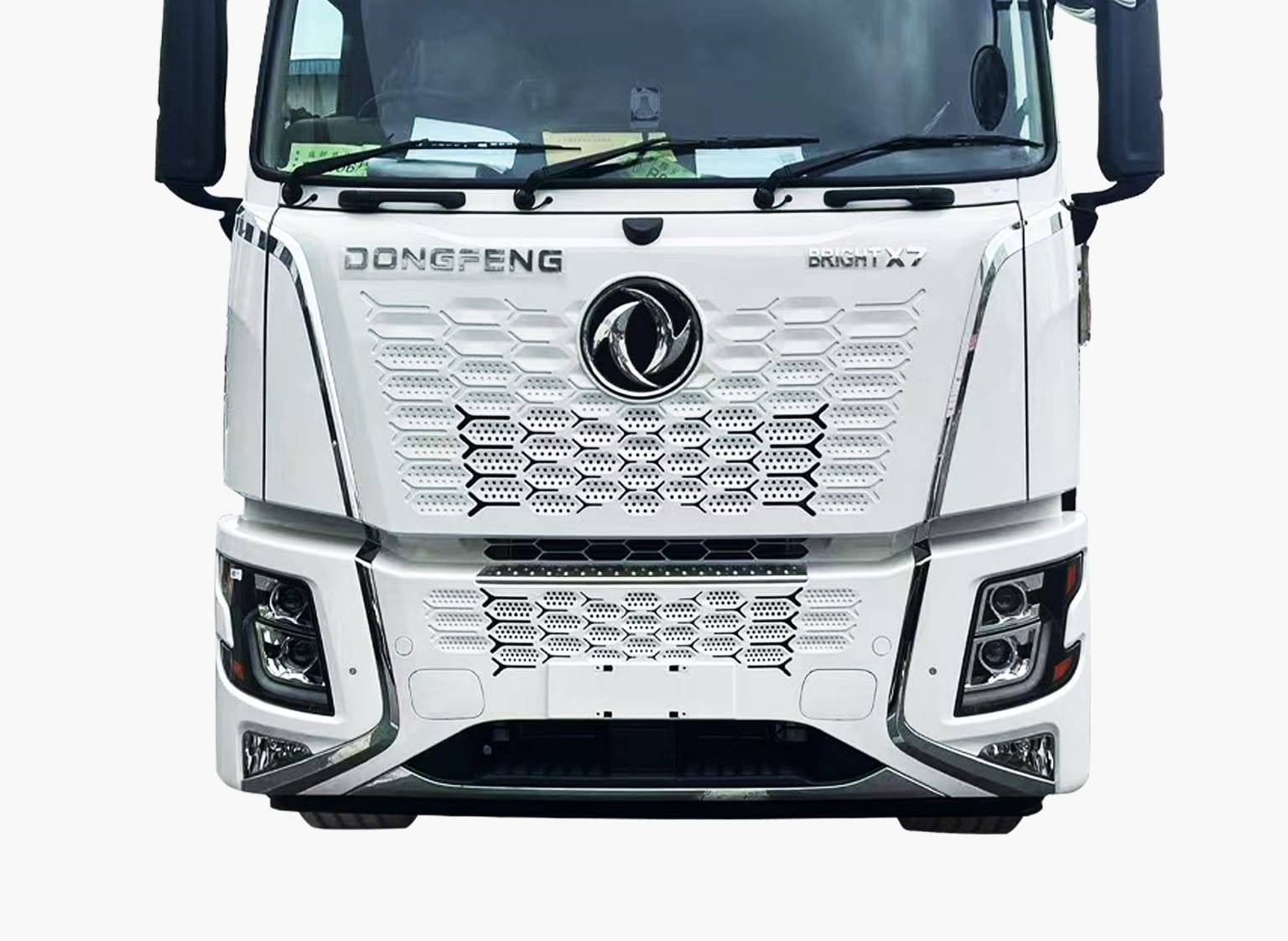

Honeycomb 3D Grille

Sculpted grille pattern enhances cooling efficiency and defines the X7’s bold, performance-driven front end.

previous arrow
next arrow
Thumbnail 2
Thumbnail 2
previous arrow
next arrow

SAFETY AND PERFORMANCE

High-Power Performance
High-Power Performance
Up to 560hp and 2,650Nm torque – engineered to efficiently move the heaviest loads with ease.
Driver-Centric Safety Systems
Driver-Centric Safety Systems
Built-in Lane Departure (LDWS) and Forward Collision (FCWS) warning systems actively support safer, smarter driving.
Built for the Long Run
Built for the Long Run
Designed for high-demand logistics, delivering lasting reliability, lower fuel costs, and peace of mind on the road.

SPECIFICATION

Brand

DFCV

Model Code

T24Z5-X5-R40AY
T94Z5-X3-R40AY
T54Z5-X0-R40AY

Configuration

4x2
6x2
6x4

GVW (Gross Vehicle Weight)

43,000kg
55,000kg
65,000kg

Maximum Speed

90km/H
90km/H
90km/H

Gradeability

45%
35%
55%

Curb Weight

7,900kg
9,950kg
9,950kg

Minimum Turning Radius

12m
12.5m
12.5m

Model

Cummins Z14E480 51
Cummins Z14E520 51
Cummins Z14E560 51

Type

Diesel, Inline 6-cylinder, Turbocharged, Inter-cooled

Fuel Injection System

ECU Control High Pressure Injection common rail

Displacement

13,480cc

Max. Output

358kW / 480PS @ 1,600rpm
388kW / 520PS @ 1,600rpm
418kW / 560PS @ 1,600rpm

Max. Torque

2,400Nm @ 1,400rpm
2,500Nm @ 1,400rpm
2,650Nm @ 1,500rpm

Emission Standards

Euro V with SCR

Type

Hydraulic control with air booster

Diameter

Φ430mm

Model

(FAST- F16JZ26A) 16 Speed AMT

Gear Ratio

1st

14.129

2nd

11.703

3rd

9.766

4th

8.089

5th

6.685

6th

5.537

7th

4.521

8th

3.745

9th

3.125

10th

2.588

11th

2.160

12th

1.789

13th

1.479

14th

1.225

15th

1.000

16th

0.828

Reverse 1

12.999

Reverse 2

10.767

Cross-sectional Dimensions (mm)

280 x 80 x 8+4

Width

850mm~940mm

Layer

Double Layer

Service Braking system

Dual-circuit, Full Air brake

Front Brake

Drum
Disc
Drum

Rear Brake

Drum
Disc
Drum

Auxiliary Brake system

Engine Brake

Safety

LDWS + FCWS + ABS

Parking Brake

Spring Brake, acting on rear axle

Front Type

Elliot, I-Beam

Front Capacity

7,000kg

Rear Type

Single Reduction Axle
Single Reduction, Lift Axle
Single Reduction, Tandem Axle

Rear Capacity

13,000kg
13,000kg + 10,000kg
13,000kg + 13,000kg

Rear Ratio

3.420
3.640
3.640

Front Type

Parabolic Leaf Spring with Dual Acting Shock Absorber

Front Number of Springs

3

Rear Type

Multi Leaft Spring
Liftable Air Bellow
Parabolic Leaf Spring

Rear Number of Springs

9 main springs + 3 helper springs
/
5 main springs

Wheel Type

10 Stud Tubeless Tires

Wheel Size

295/80R22.5

Rim Size

9.00 x 22.5 Steel

Number of Tires

6 + 1
10 + 1
10 + 1

Cab Type

High roof two bunks sleeper cab, Full air cab suspension

Feature

Air conditioner, Electric power window, Central locking, Electrical adjustable side mirror

Seating

Air Suspension Driver’s seat

Tilting

Electronic Type

Steering

Recirculating ball with Hydraulic power assistance

Power Window

Yes

Central Locking

Yes

Battery

12V, 165AH x 2ps

Alternator

28V - 110A

Capacity

400L

Material

Magnalium

Capacity

45L

Material

Plastic

Wheelbase (WB)

3,800mm
3,350mm + 1,350mm
3,350mm + 1,350mm

Overall Length (OL)

6,360mm
6,990mm
6,990mm

Overall Width (OW)

2,550mm
2,550mm
2,550mm

Overall Height (OH)

3,900mm
3,900mm
3,900mm

Front Overhang (FOH)

1,480mm
1,480mm
1,480mm

Rear Overhang (ROH)

1,080mm
810mm
810mm

Front Track (FT)

2,060mm
2,060mm
2,060mm

Rear Track (RT)

1,860mm
1,860mm
1,860mm
