KINGRUN 270

Strength Meets Versatility

This medium-duty powerhouse delivers exceptional performance and adaptability,
engineered to excel across demanding applications from heavy construction work to complex logistics operations.

Interior  Exterior  Safety and Performance Specification

INTERIOR

Thumbnail 1
Comfortable Cab Design

Spacious ergonomic cab of 2,280mm wide x 1,905mm high maximises comfort during extended operations.

Thumbnail 2
Transmission Excellence

FAST 9-speed manual transmission with optimised ratios ensures precise shifts and superior power delivery across all driving conditions.

Thumbnail 2

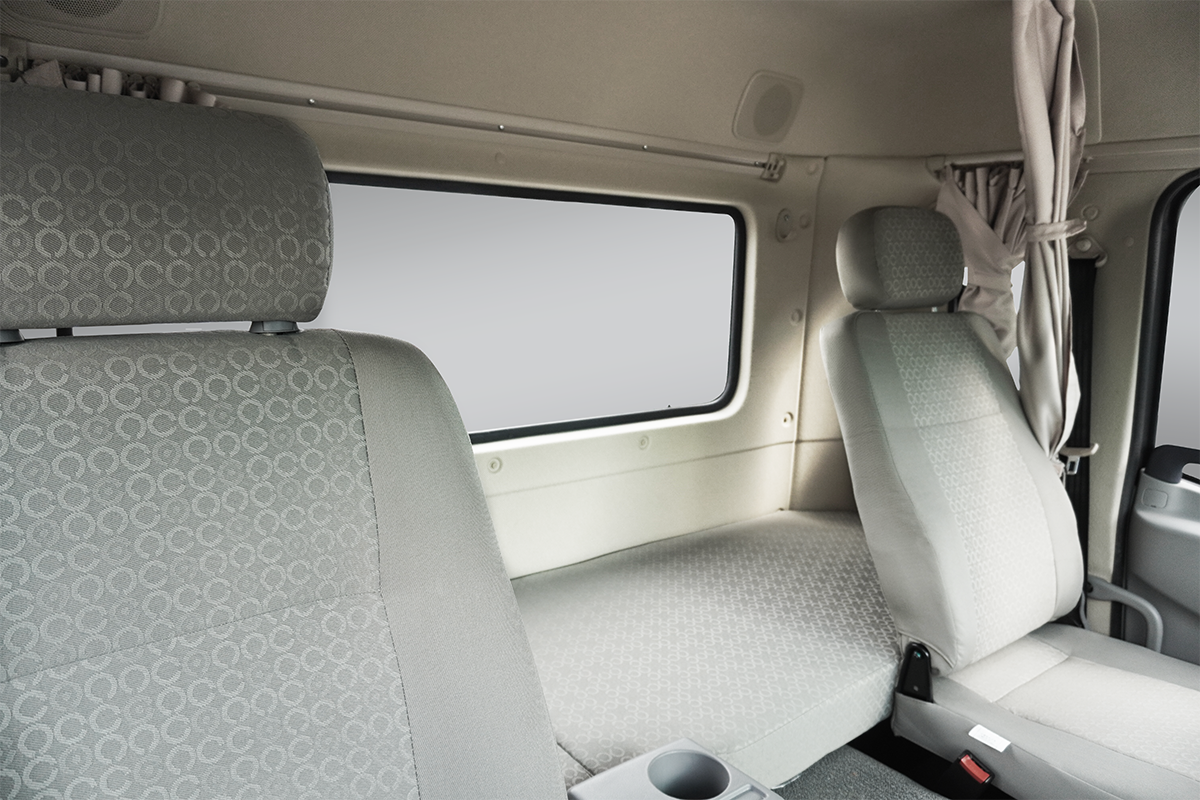

Integrated Sleeper Bench

Comfortable built-in sleeper bench provides essential rest space for long-distance journeys, enhancing driver endurance and reducing fatigue.

previous arrow
next arrow
Thumbnail 1
Thumbnail 2
Thumbnail 2
previous arrow
next arrow

EXTERIOR

Thumbnail 1
Maximum Stability and Resilience

Comes equipped with an airfoil for improved high-speed stability and better fuel economy.

Thumbnail 2

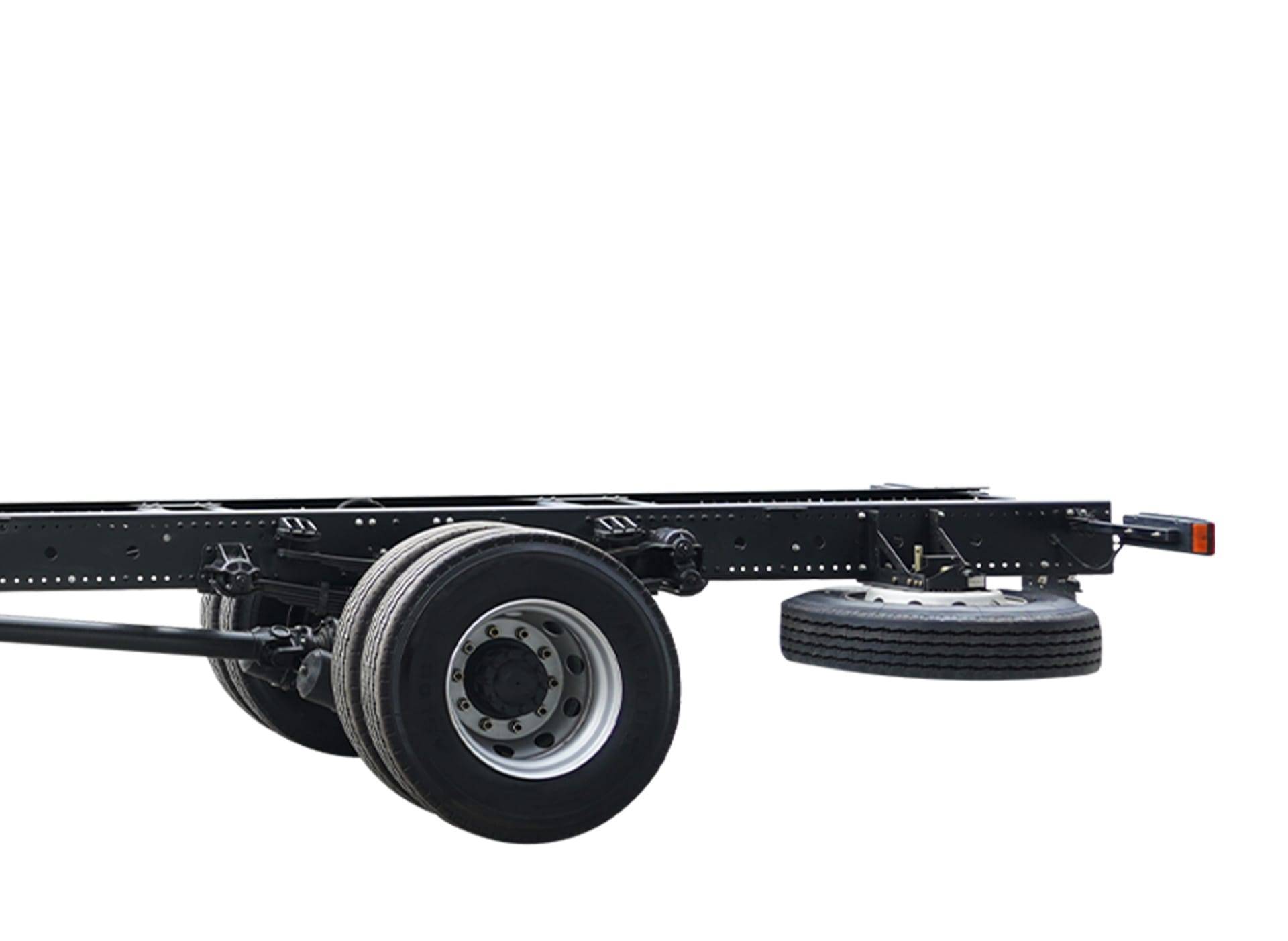

Flexible Wheelbase

Customisable from 4,800mm to 7,300mm - engineered for multiple body applications and operational flexibility.

Thumbnail 2
Advanced Visibility

Integrated headlamp and fog light ensures enhanced visibility and safer driving, especially in low-light conditions.

Thumbnail 2

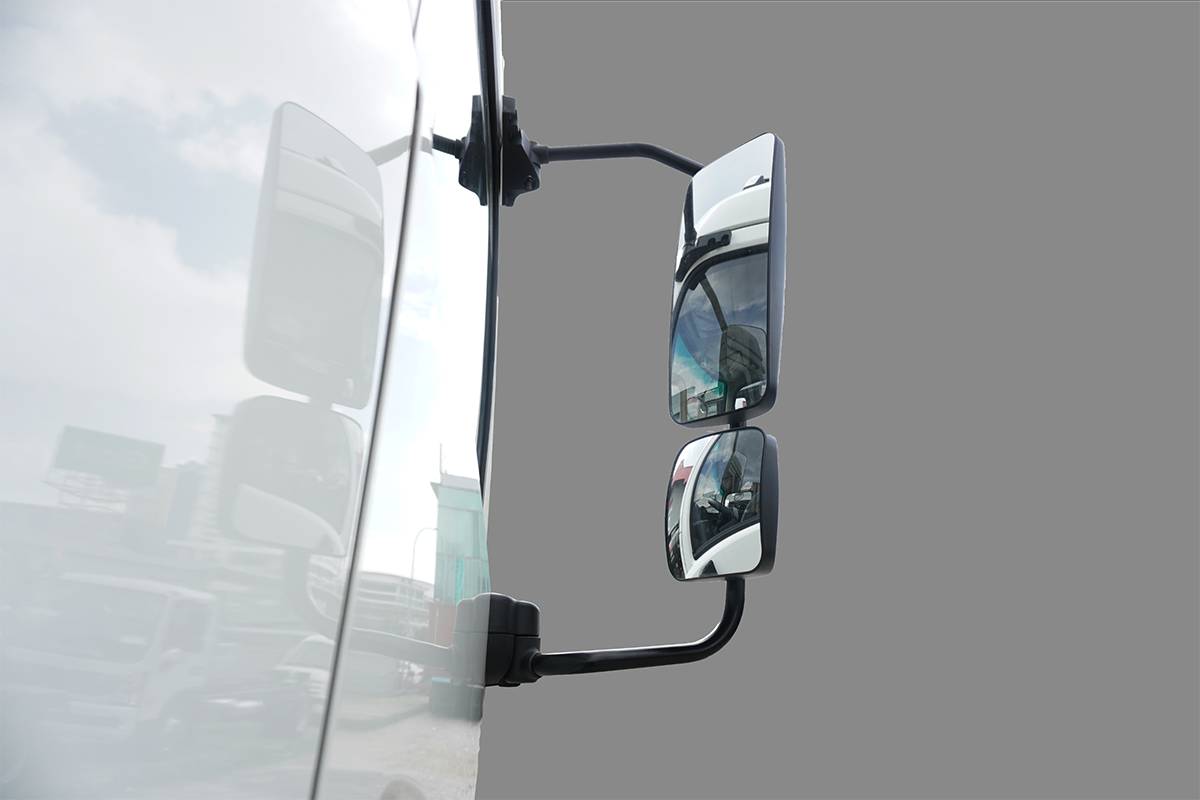

Enhanced Visibility Mirrors

Dual large side mirrors with wide-angle lower lens provide expanded rear and blind spot coverage, ensuring safer lane changes and maneuvering.

Thumbnail 2

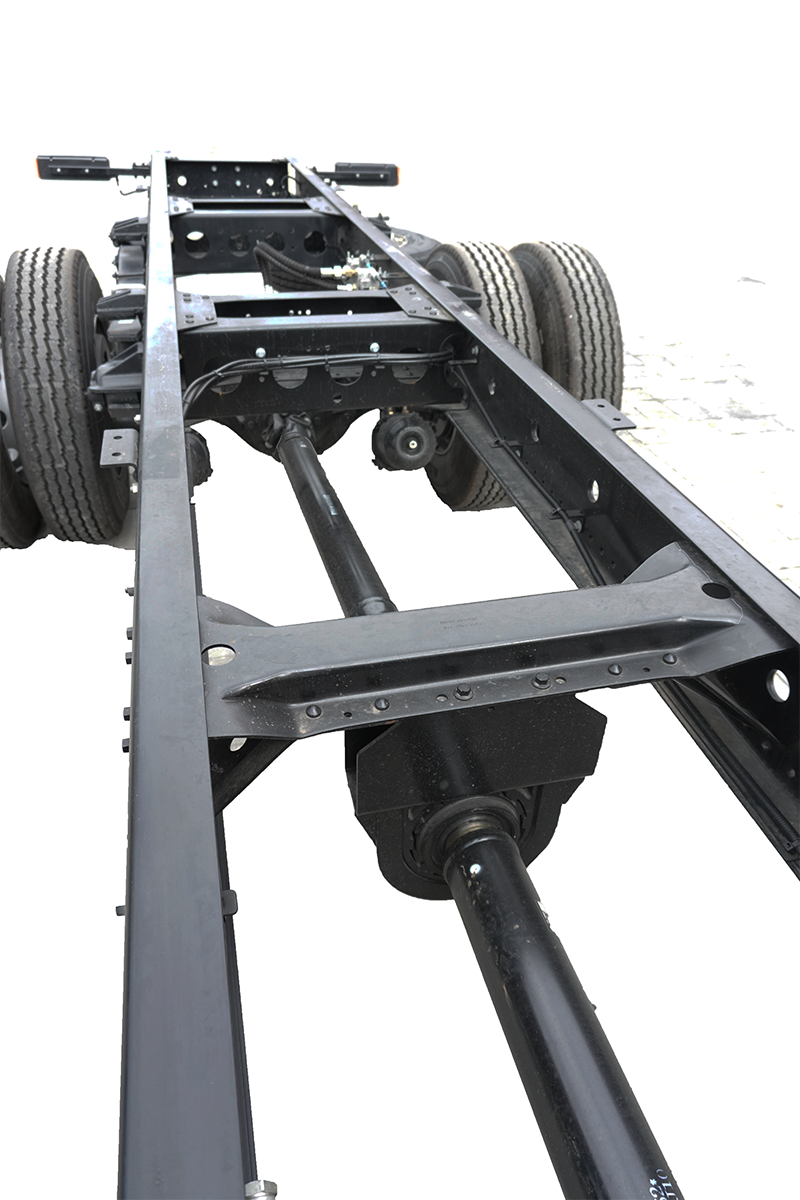

Reinforced Chassis Frame

Heavy-duty backbone built with a 280×80×(7+4)mm double-layer chassis for exceptional strength and durability under heavy loads.

previous arrow
next arrow
Thumbnail 1
Thumbnail 2
Thumbnail 2
Thumbnail 2
Thumbnail 2
previous arrow
next arrow

SAFETY AND PERFORMANCE

Powerful Engine
Powerful Engine
6,690cc turbocharged diesel engine powered by the DongFeng Cummins ISDe270-50, delivering 270hp and 970 N·m of torque that meets Euro 5 standards for optimal performance.
Safety First
Safety First
Advanced pneumatic braking with ABS and exhaust brake technology prioritizes driver safety and confidence on every journey.
Built for Heavy Loads
Built for Heavy Loads
Single axle design ensures optimal load distribution and performance for demanding cargo requirements.
Fuel Efficiency and Compliance
Fuel Efficiency and Compliance
A 280-litre steel fuel tank optimised for long-distance travel, meeting Euro 5 sustainable transportation emission standards.
Robust Suspension System
Robust Suspension System
Multi-leaf spring suspension front and rear provides smooth rides and exceptional load-carrying capacity for long-haul stability.
Tough Tyres and Rims
Tough Tyres and Rims
Durable tubeless tires (295/80 R22.5) on robust steel rims
(9.00 x 22.5) ensure excellent traction across diverse terrain.

SPECIFICATION

Brand

DFCV

Model Code

DFL1180

Configuration

4x2

GVW (Gross Vehicle Weight)

19,000kg

Maximum Speed

90km/H

Gradeability

40%

Curb Weight

6,060kg

Minimum Turning Radius

10.63m

Model

Cummins ISD270-50

Type

Diesel, in-line 6 cyl, Turbo Intercooler

Fuel Injection System

ECU Control Common Rail Injection

Displacement

6,690cc

Max. Output

198kW / 270PS @ 2,500rpm

Max. Torque

956Nm @ 1,200rpm

Emission Standards

Euro V with SCR

Type

Dry Single Plate Clutch With A Diaphragm Spring

Diameter

Φ430mm

Model

(FAST-9JS119T-B) 9 Speed MT

Gear Ratio

1st

12.110

2nd

8.080

3rd

5.930

4th

4.420

5th

3.360

6th

2.400

7th

1.760

8th

1.320

9th

1.000

Reverse

12.660

Cross-sectional Dimensions (mm)

280 x 80 x 7+4

Width

860mm

Layer

Double Layer

Service Braking system

Dual-circuit, Full Air brake

Front Brake

Drum

Rear Brake

Drum

Auxiliary Brake system

Exhaust Brake

ABS (Antilock Braking System)

Yes

Parking Brake

Spring Brake, acting on rear axle

Front

Type
Elliot, I-Beam
Capacity
7,000kg

Rear

Type
Single Reduction by hypoid gearing
Capacity
13,000kg
Ratio
4.110

Front

Type
Multi Leaf Spring with Dual Acting Shock Absorber
Number of Springs
8

Rear

Type
Multi Leaf Spring with Dual Acting Shock Absorber
Number of Springs
10 main springs + 8 helper springs

Wheel Type

10 Stud Tubeless Tires

Wheel Size

295/80R22.5

Rim Size

9.00 x 22.5 Steel

Number of Tires

6 + 1

Cab Type

One and Half Row

Cab Height

1,905mm

Cab Width

2,280mm

Tilting

Mechanical Type

Steering

Recirculating ball with Hydraulic power assistance

Power Window

Yes

Central Locking

Yes

Battery

12V, 140AH x 2ps

Alternator

28V - 70A

Capacity

280L

Material

Steel

Capacity

25L

Material

Plastic
