EC31

The Electric Choice for Your Business

Engineered with customisable configurations and zero-emission technology,
this compact electric panel van reduces your environmental footprint and operating costs.

Interior  Exterior  Safety and Performance Specification

INTERIOR

Thumbnail 1

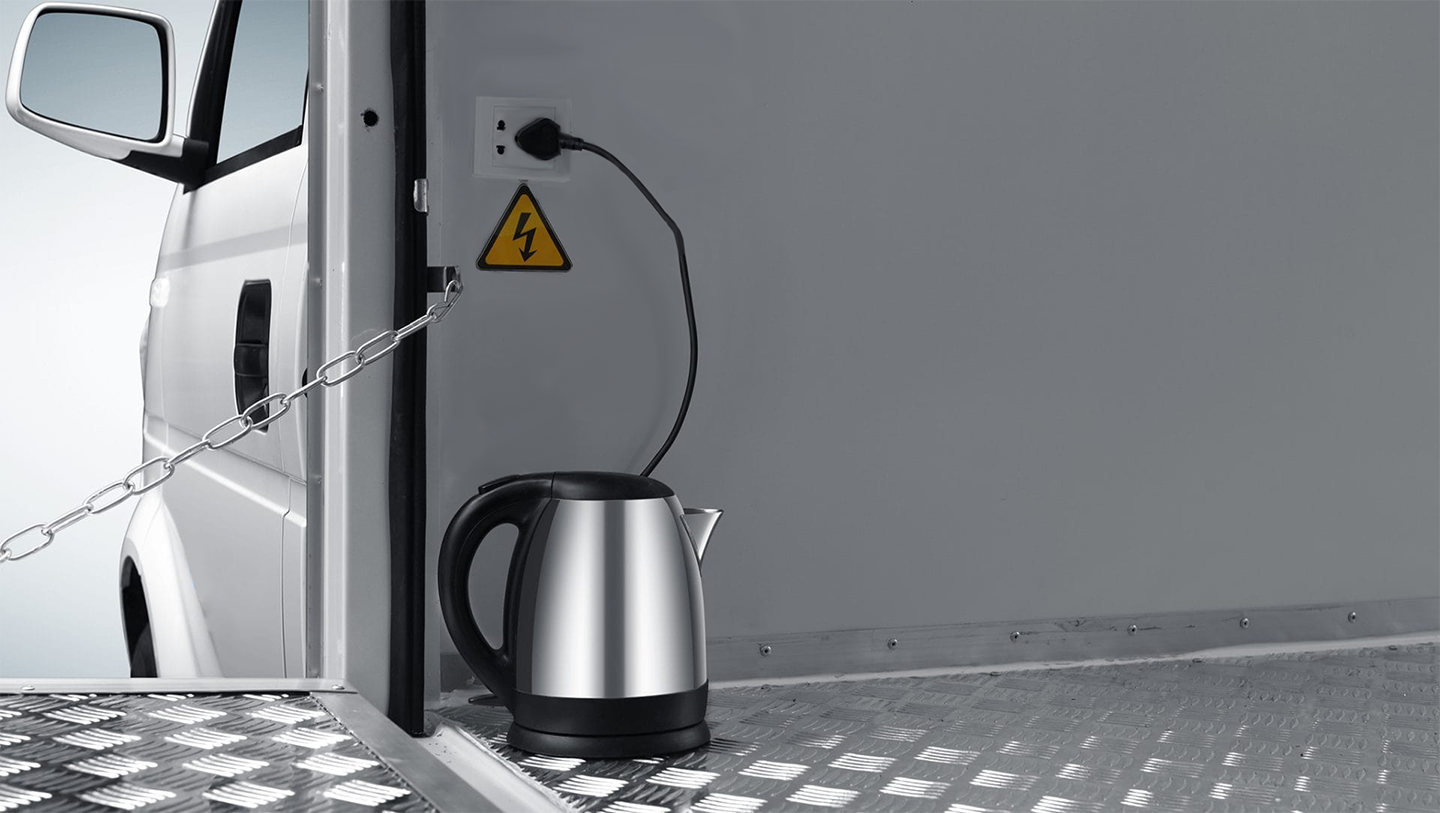

Charging Access

Example of EV charging integration shown; specifications may vary depending on configuration and market availability.

Thumbnail 2
Digital Dashboard

Clear displays showing battery status and range indicator, keeping you informed and in control.

Thumbnail 2

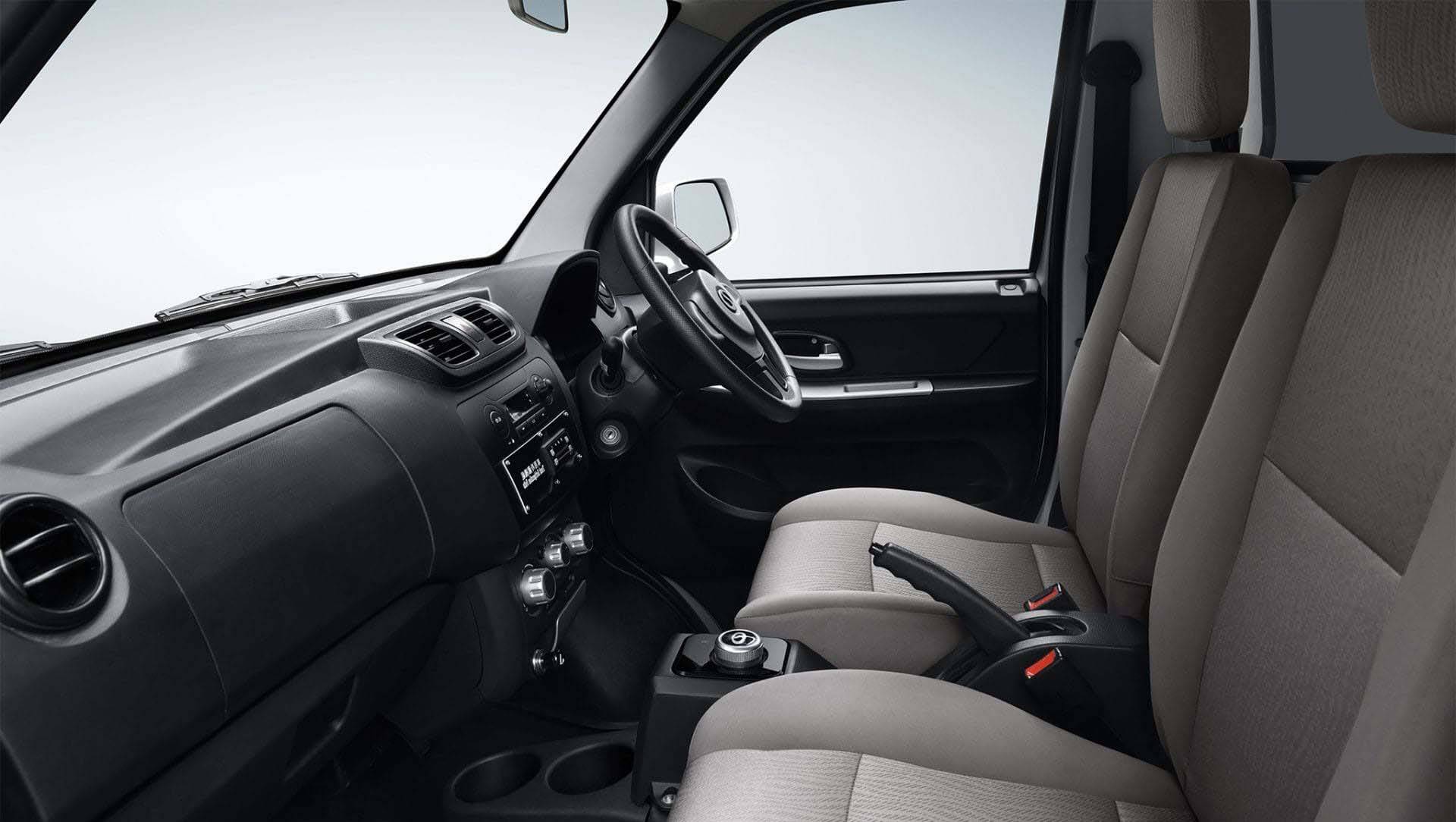

Interior Cabin

Ergonomically designed for driver comfort during long-hauls, with spacious seating and intuitive controls.

previous arrow
next arrow
Thumbnail 1
Thumbnail 2
Thumbnail 2
previous arrow
next arrow

EXTERIOR

Thumbnail 2

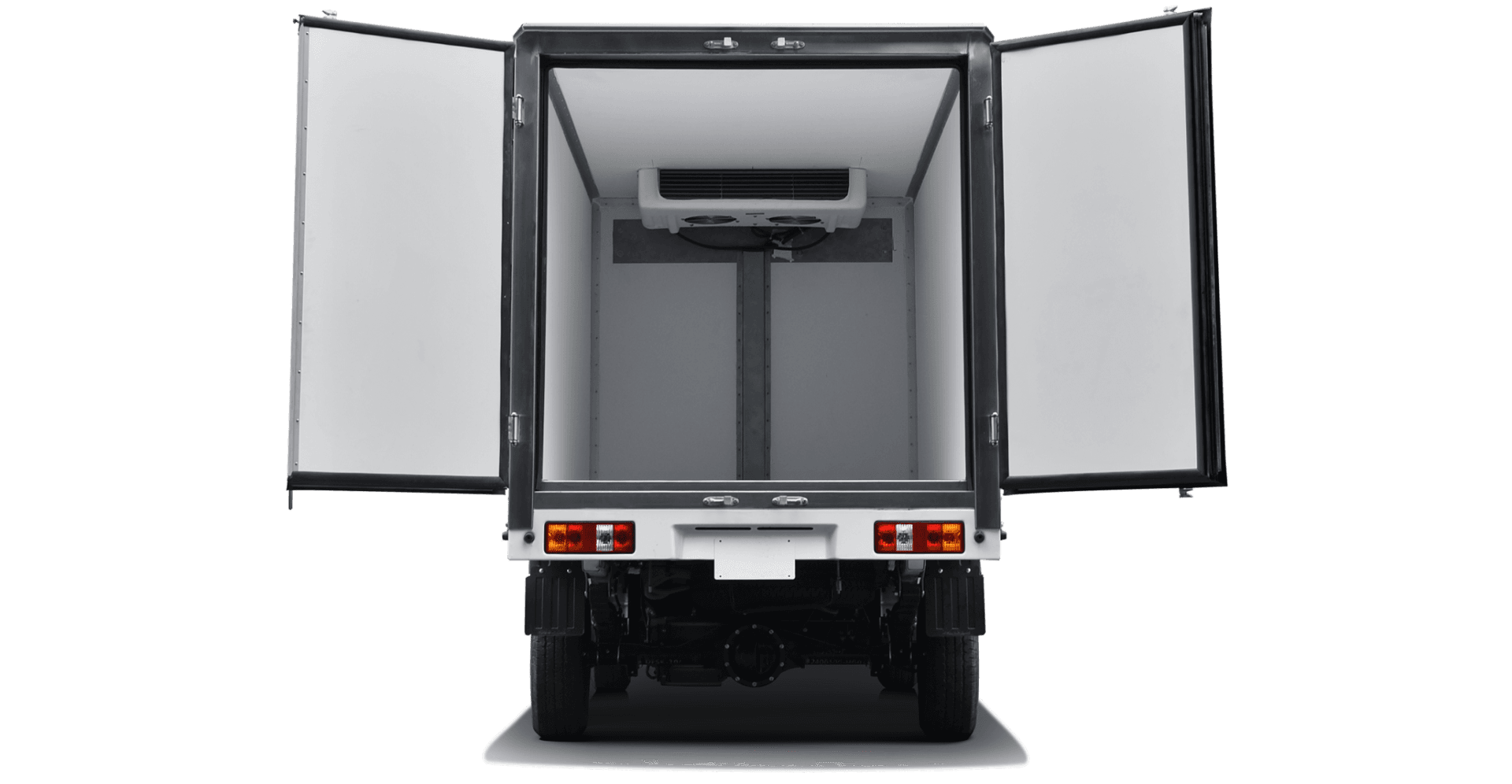

Cold Chain Solution

Refrigerated configuration box perfect for food delivery and temperature-sensitive cargo.

Thumbnail 2

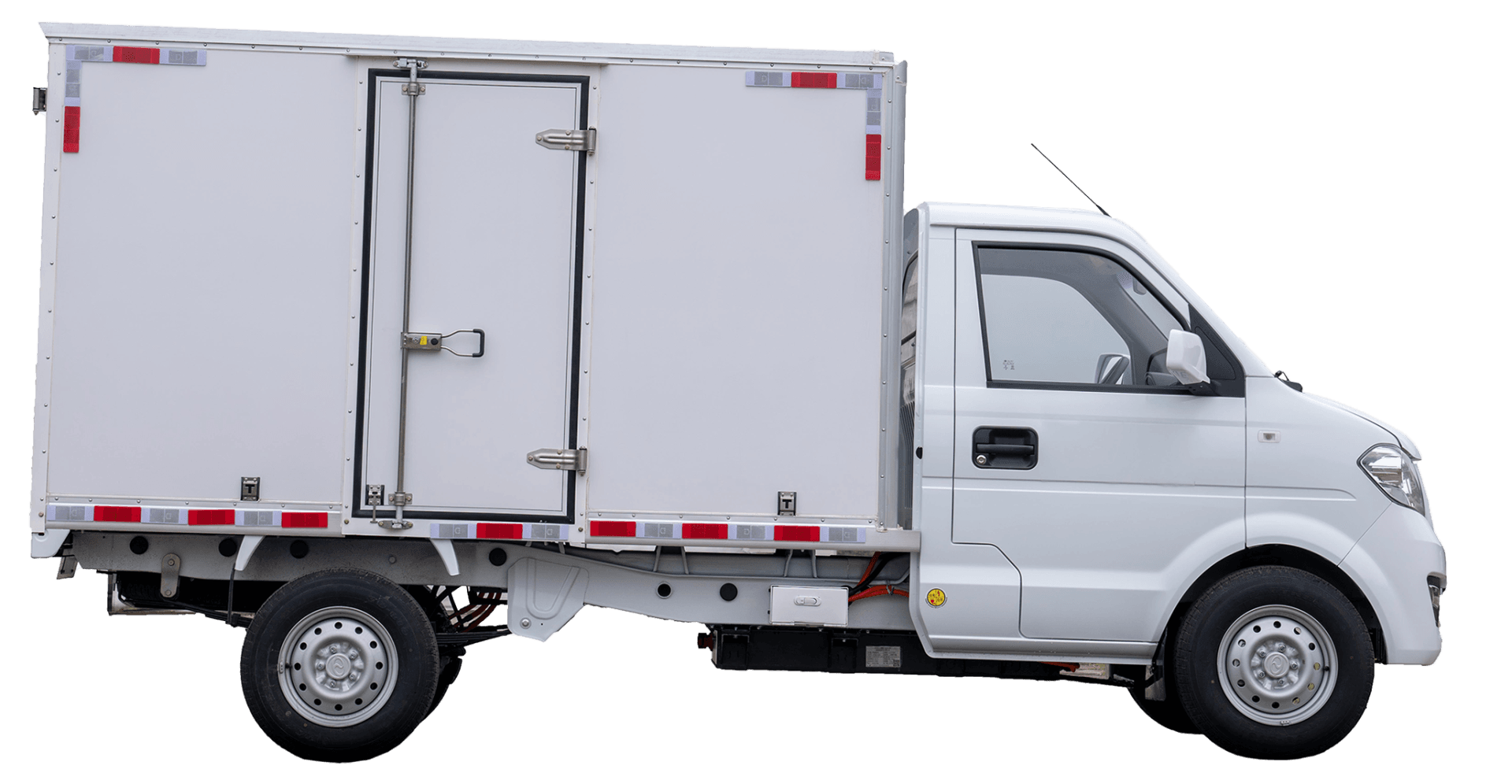

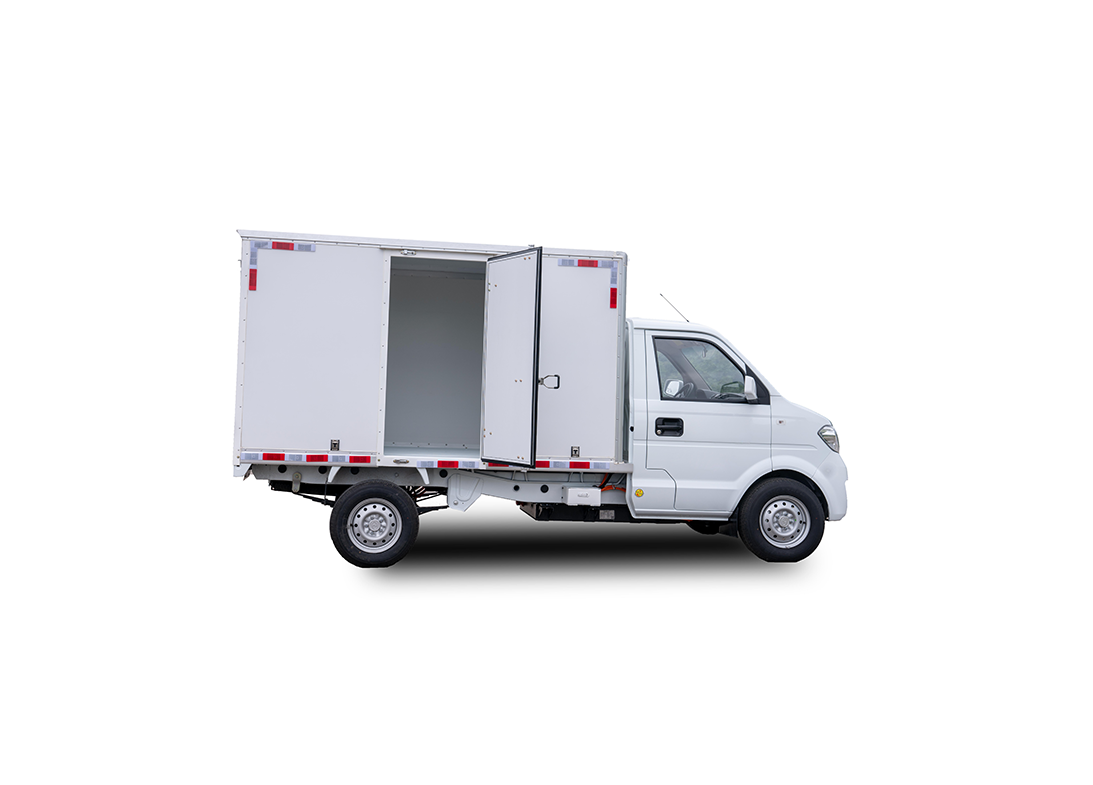

Box Van Configuration

Maximise 8.5m³ cargo capacity while maintaining compact maneuverability and zero emissions efficiency.

Thumbnail 2
Practical Load Management

Durable cargo floor design with integrated tie-down points to secure 1,020kg payload efficiently.

Thumbnail 2

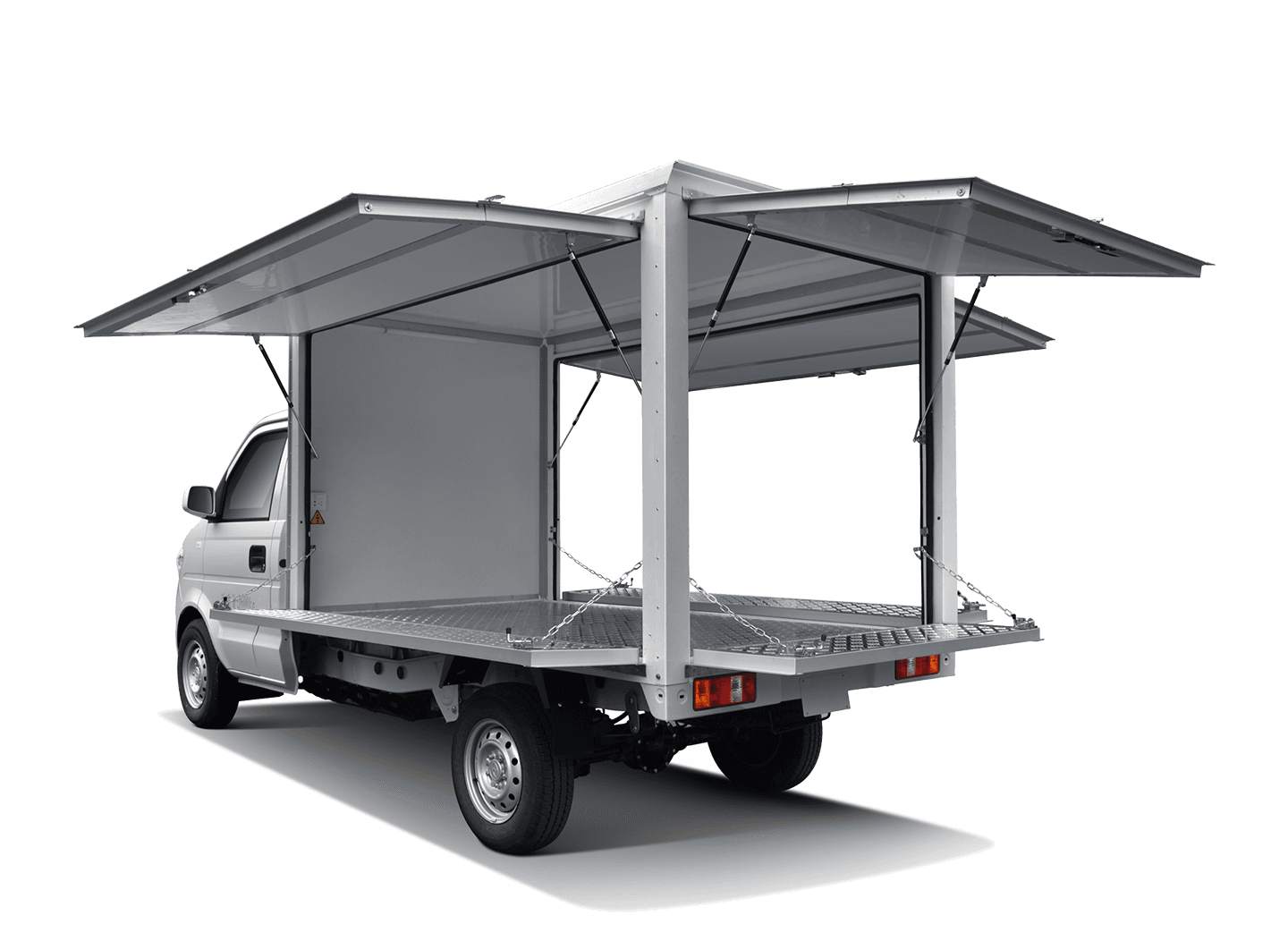

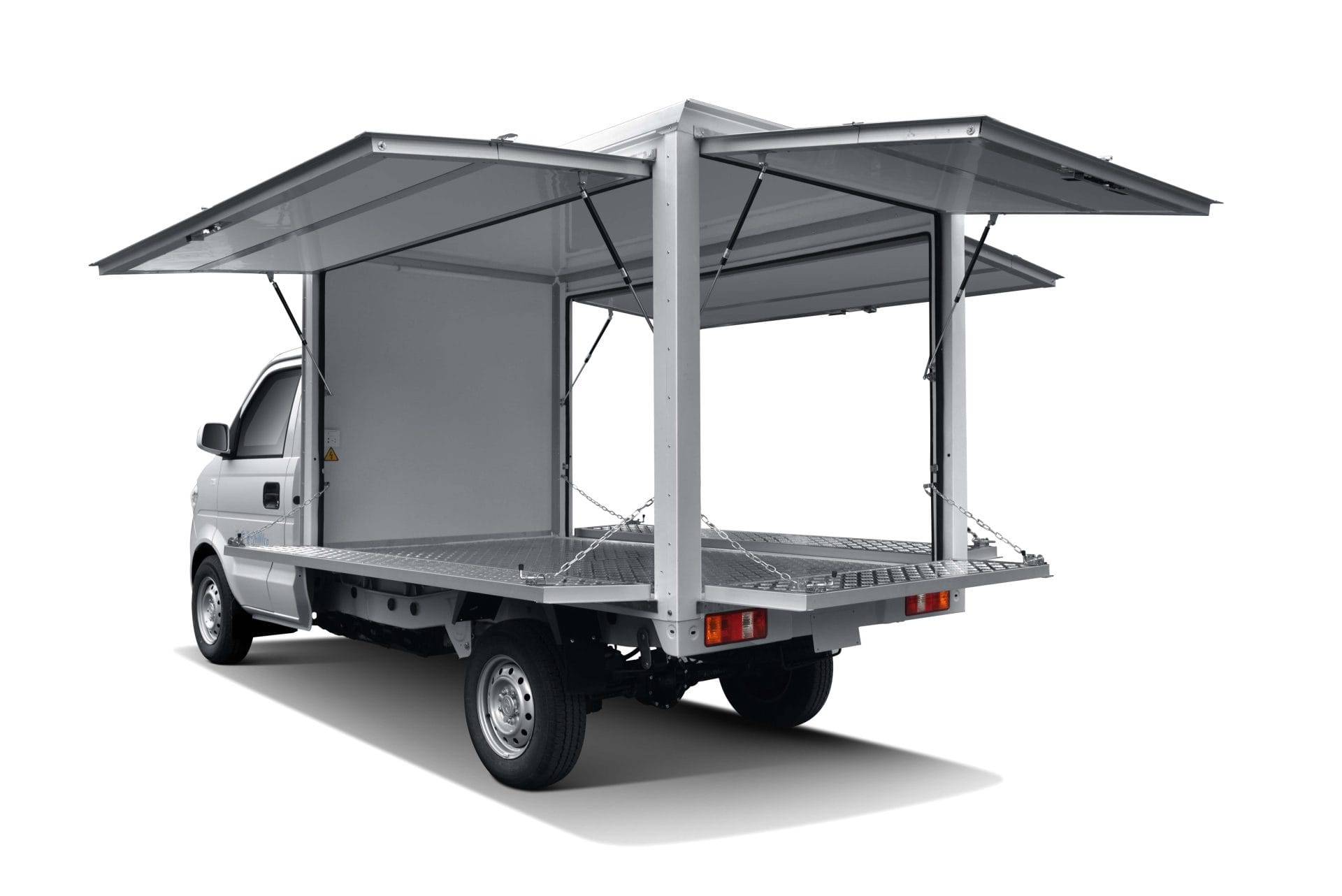

Food Van

Customised for mobile F&B operations that combine zero-emission performance with practical space and flexibility.

previous arrow
next arrow
Thumbnail 2
Thumbnail 2
Thumbnail 2
Thumbnail 2
previous arrow
next arrow

SAFETY AND PERFORMANCE

Smooth All-Day Ride
Smooth All-Day Ride
Travel up to 200km on a single charge, ensuring uninterrupted business operations throughout your workday.
Swift Charging
Swift Charging
Rapid charging from 20% to 80% in just 35 minutes keeps your business moving with minimal downtime.
Exceptional Payload
Exceptional Payload
Designed to handle up to 1,020kg payload capacity with confidence and reliability.
Spacious Cargo Area
Spacious Cargo Area
Maximise efficiency with up to 8.5m³ of cargo space for all your business needs.

SPECIFICATION

Brand

DFSK

Model Code

EC31

Body

Chassis and Cab

Seating Capacity

2 seats

GVW (Gross Vehicle Weight)

2,600kg

Cab Width

1,635mm

Curb Weight

1,450kg

Maximum Speed

90km/H

Minimum Turning Radius

8.0 m

Ground Clearance

190mm

Type

Lithium-ion Phosphate

Battery Capacity (kWh)

38.7kWh

Rapid Charging, DC 40kWh

35 min (SOC 20%~80%)

Fast Charging, AC 6.6kWh

4 hrs (SOC 20%~80%)

Driving Range (City Drive)

200 km

Motor Type

AC Permanent magnet synchronous motor

Drive mode

Rear wheel drive

Maximum power (kW)

60kW

Maximum torque (N.m)

200Nm

Front

Capacity
1,000kg

Rear

Capacity
1,600kg

Front

Type
MacPherson independent Suspension

Rear

Type
5pc Multi-Leaf Spring, Non-independent Suspension

Braking System

Front Disc, Rear Drum

Braking Mode

Hydraulic

ABS (Antilock Braking System)

Yes

Driving Type

Rear Wheel Drive

Front Suspension

MacPherson independent

Rear Suspension

5-Leaf Spring, Non-independent Suspension

Steering

Electric Power Steering

Tyre

185/80R14

Rim

Silver steel wheels

Wheel nuts

Galvanized nuts

Headlamp

Halogen

Front Door Window

Electric Power Window

Instrument Panel

Modern Meter Cluster

Audio System

AM/FM Radio

Aircon

Manual Single Zone

Seat Belts

3-point

Horn

Tone Horn
Image link

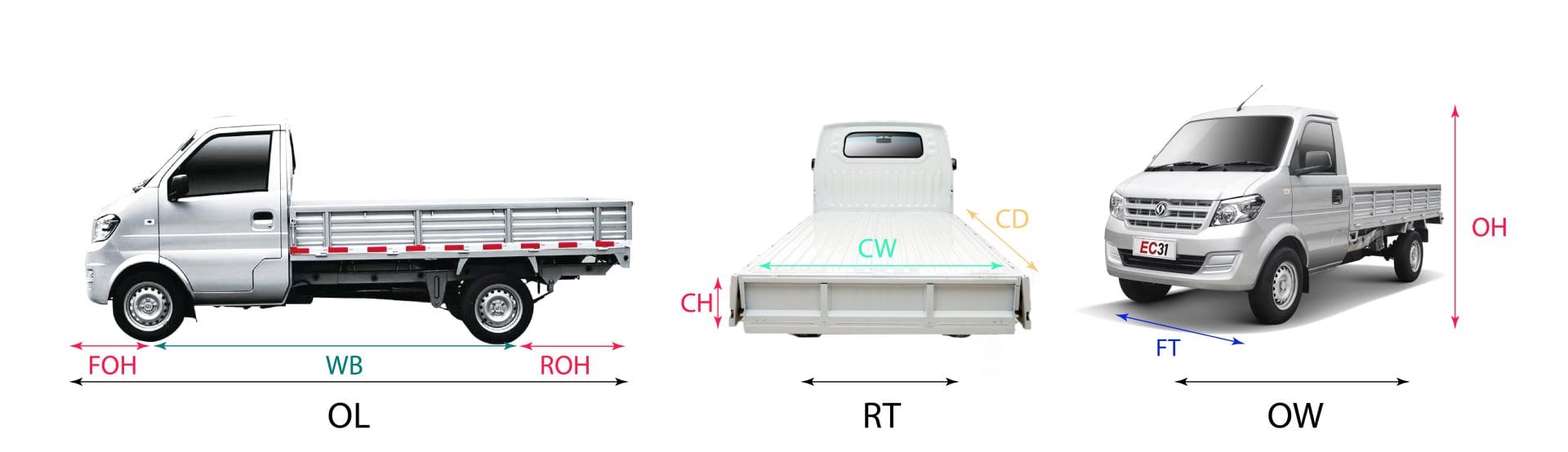

Wheelbase (WB)

3,050mm

Overall Length (OL)

4,730mm

Overall Width (OW)

1,635mm

Overall Height (OH)

1,985mm

Front Overhang (FOH)

680mm

Rear Overhang (ROH)

1,000mm

Front Track (FT)

1,410mm

Rear Track (RT)

1,410mm
