EC35

Zero-Emission Sustainable Solution

The compact electric panel van that delivers a 100% electric sustainable solution for modern logistics
with impressive range and rapid charging capabilities.

Interior  Exterior  Safety and Performance Specification

INTERIOR

Thumbnail 1

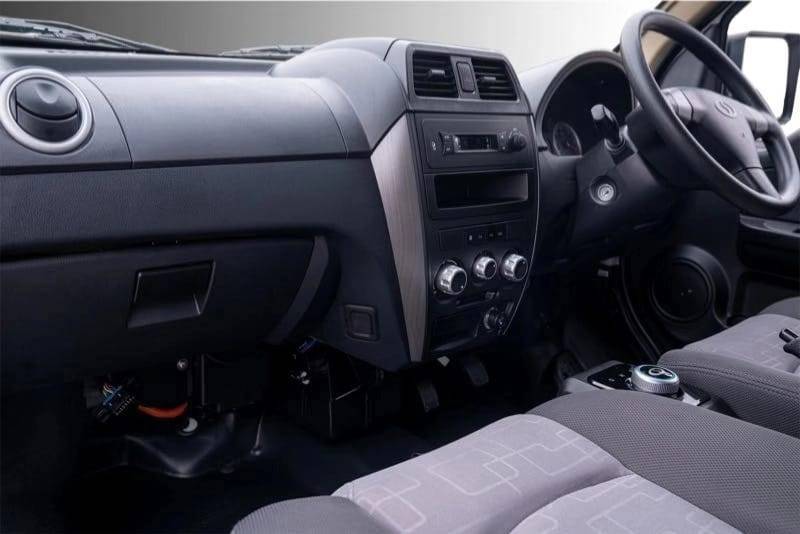

Cabin Features

Adjustable seats in stylish grey fabric, matched with a sleek black and silver dashboard.

Thumbnail 2

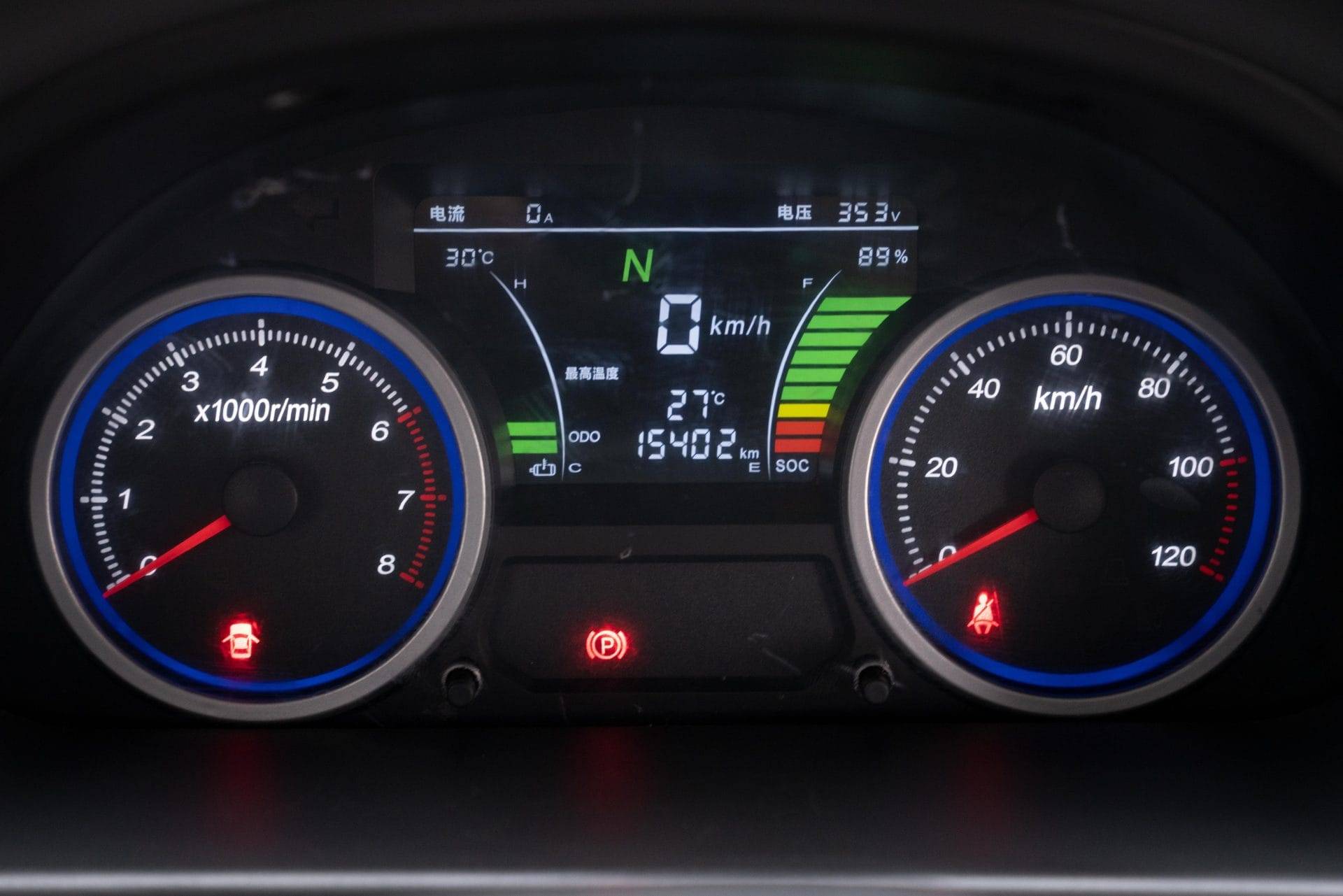

Instrument Panel

Battery charge display helps you plan your next recharge.

Thumbnail 2

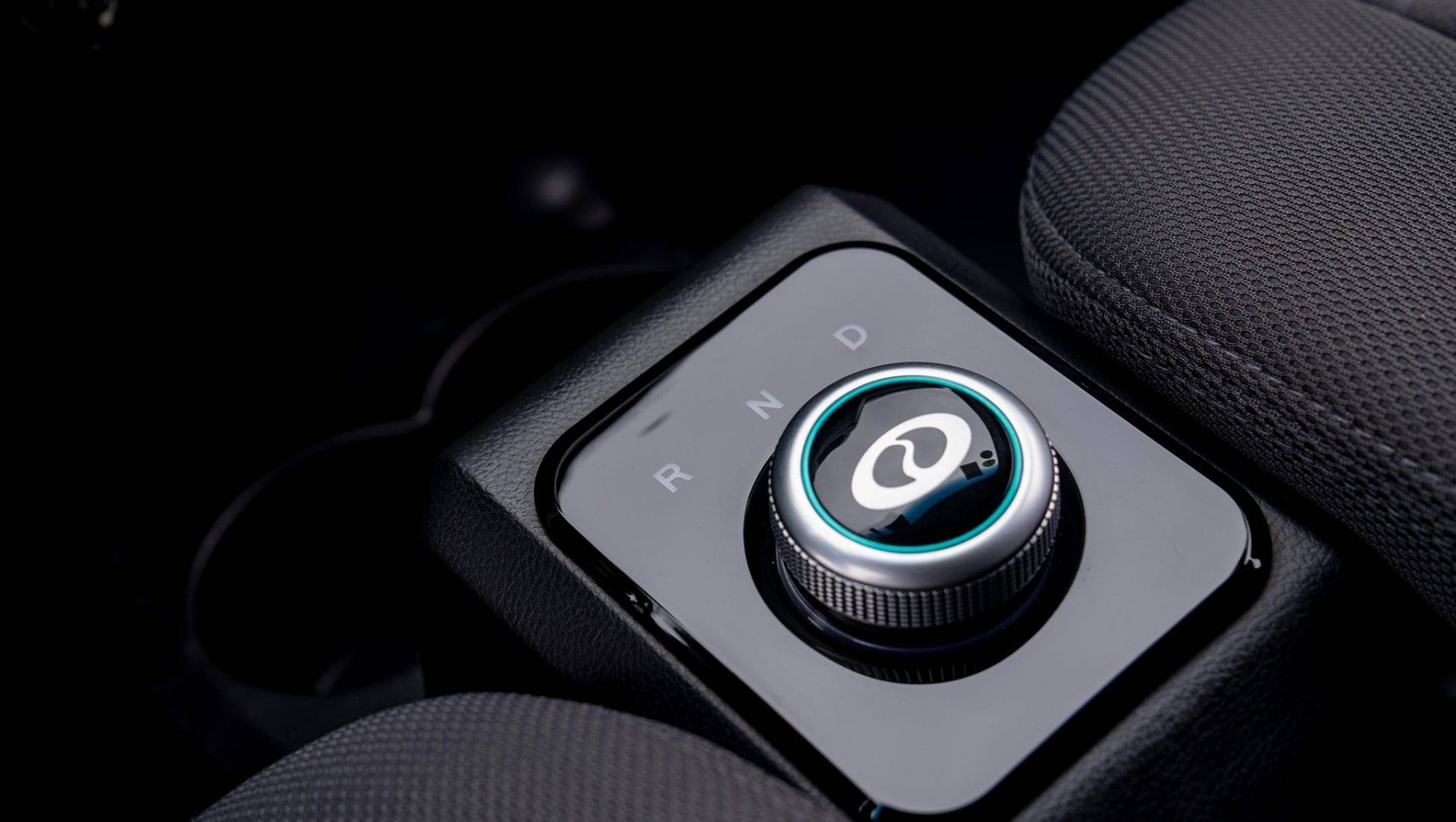

Gear Knob

Ergonomic rotary dial simplifies gear selection, blending modern design with intuitive, driver-friendly control.

previous arrow
next arrow
Thumbnail 1
Thumbnail 2
Thumbnail 2
previous arrow
next arrow

EXTERIOR

Thumbnail 1

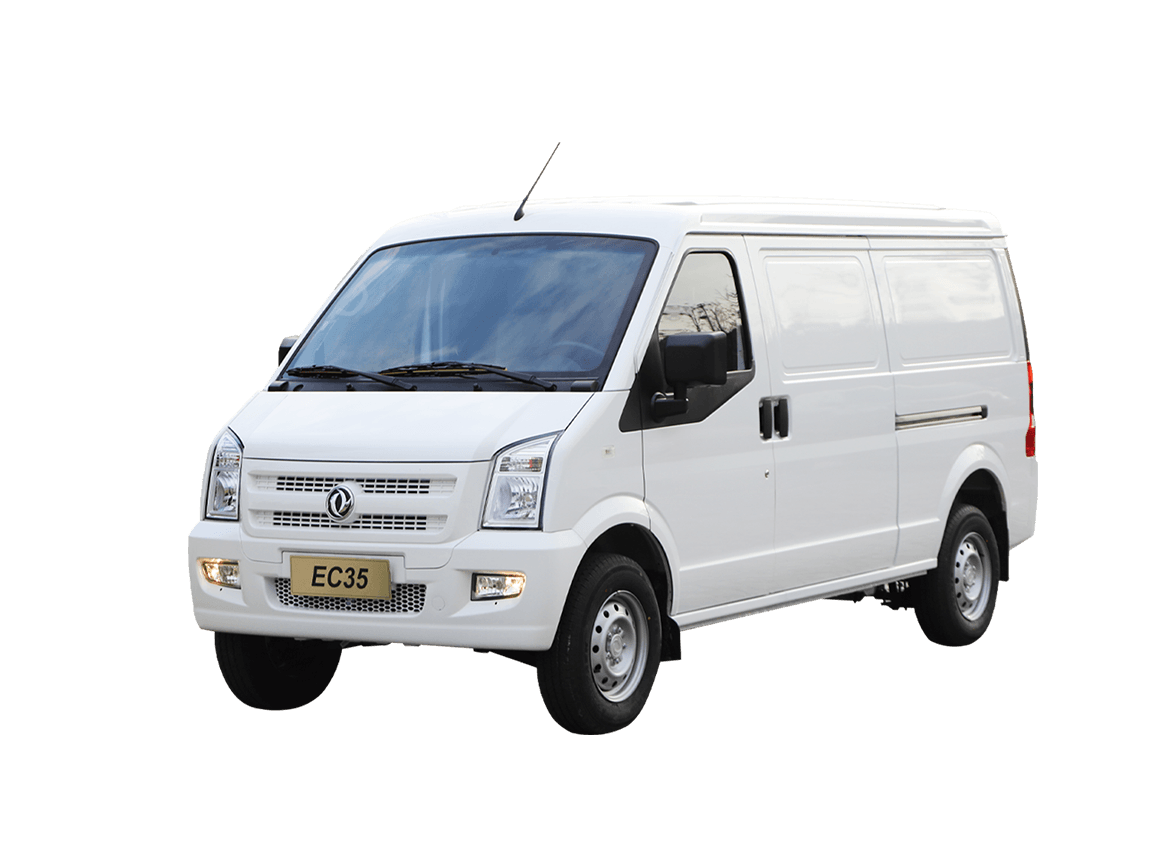

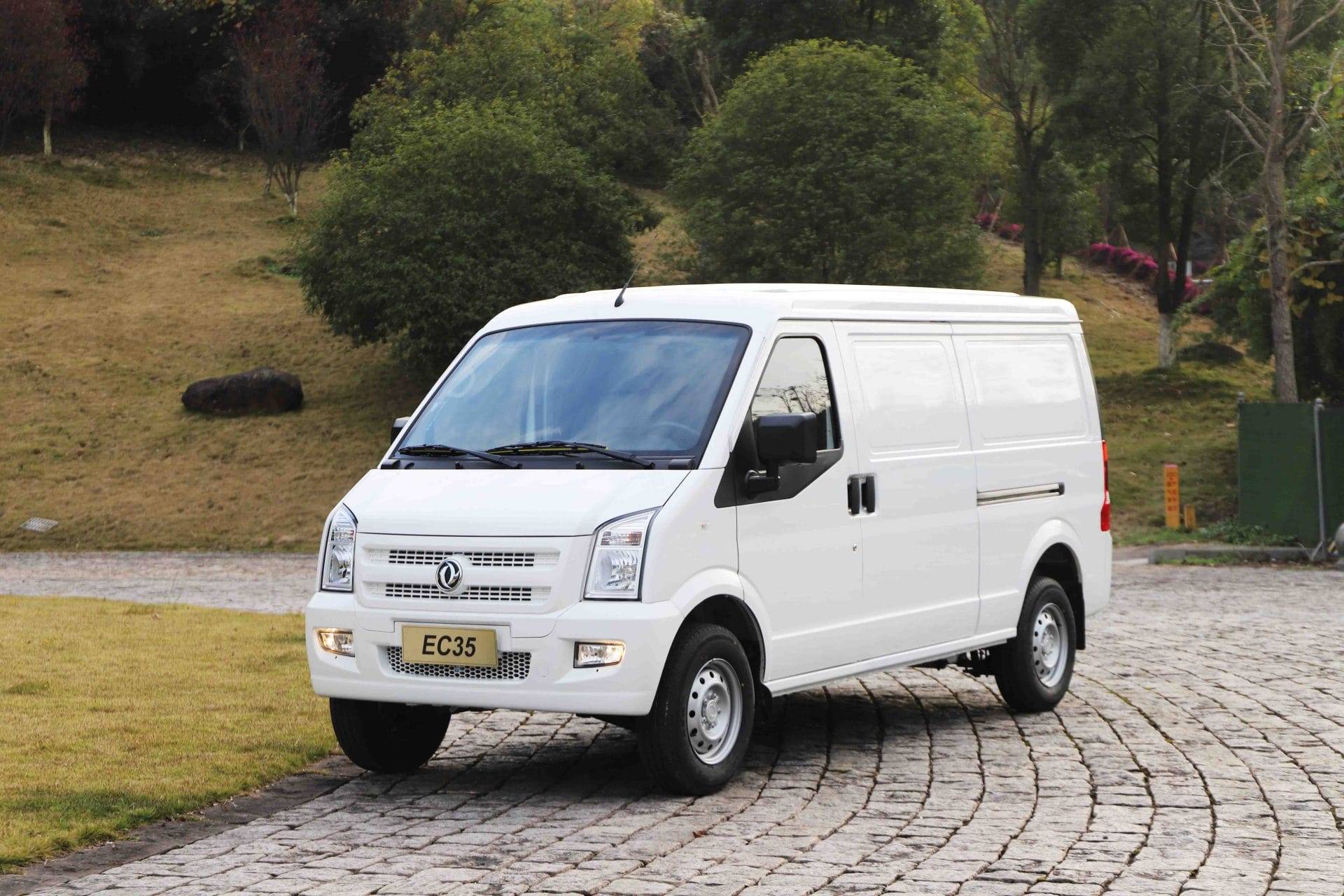

Battery EV Van

Electric van that delivers zero emissions urban mobility for modern fleets.

Thumbnail 2

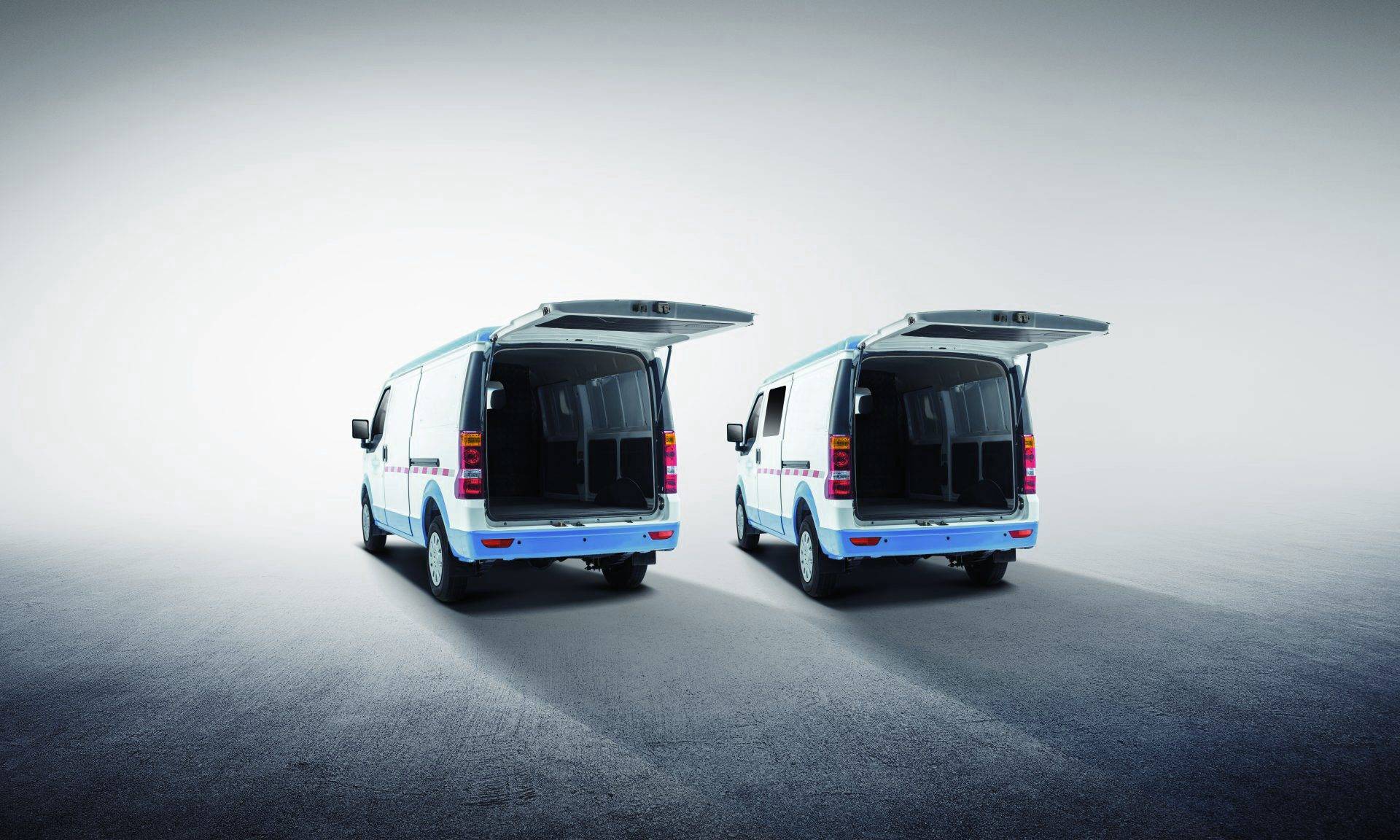

Instrument Panel

Spacious cargo access, exceptional payload, and practical design perfect for commercial operations.

previous arrow
next arrow
Thumbnail 1
Thumbnail 2
previous arrow
next arrow

SAFETY AND PERFORMANCE

Smooth All-Day Ride
Smooth All-Day Ride
Up to 200km range on a single charge keeps your deliveries running smoothly all day without recharging.
Swift Charging
Swift Charging
Rapid charging from 20% to 80% in just 35 minutes puts efficiency at your fingertips.
Exceptional Payload
Exceptional Payload
Business-ready with up to 1,015kg payload capacity for reliable goods transport
Spacious Cargo Area
Spacious Cargo Area
4.8m³ cargo capacity provides ample space, making it ideal for fleet operations.
5-Year Warranty
5-Year Warranty
Extensive 5-year or 120,000km warranty on battery, motor, and system protects your investment.

SPECIFICATION

Brand

DFSK

Model Code

EC35

Body

Panel Van

Seating Capacity

2 seats

GVW (Gross Vehicle Weight)

2,600kg

Cab Width

1,680mm

Curb Weight

1585kg

Maximum Speed

90km/H

Minimum Turning Radius

8.3m

Ground Clearance

190mm

Type

Lithium-ion Phosphate

Battery Capacity (kWh)

38.7kWh

Rapid Charging, DC 40kWh

35 min (SOC 20%~80%)

Fast Charging, AC 6.6kWh

4 hrs (SOC 20%~80%)

Driving Range (City Drive)

200 km

Motor Type

AC Permanent magnet synchronous motor

Drive mode

Rear wheel drive

Maximum power (kW)

60kW

Maximum torque (N.m)

200Nm

Front

Capacity
1,000kg

Rear

Capacity
1,600kg

Front

Type
MacPherson independent Suspension

Rear

Type
5pc Multi-Leaf Spring, Non-independent Suspension

Braking System

Front Disc, Rear Drum

Braking Mode

Hydraulic

ABS (Antilock Braking System)

Yes

Driving Type

Rear Wheel Drive

Front Suspension

MacPherson independent

Rear Suspension

5-Leaf Spring, Non-independent Suspension

Steering

Electric Power Steering

Tyre

185/80R14

Rim

Silver steel wheels

Wheel nuts

Galvanized nuts

Headlamp

Halogen

Front Door Window

Electric Power Window

Instrument Panel

Modern Meter Cluster

Audio System

AM/FM Radio

Aircon

Manual Single Zone

Seat Belts

3-point

Horn

Tone Horn
Image link

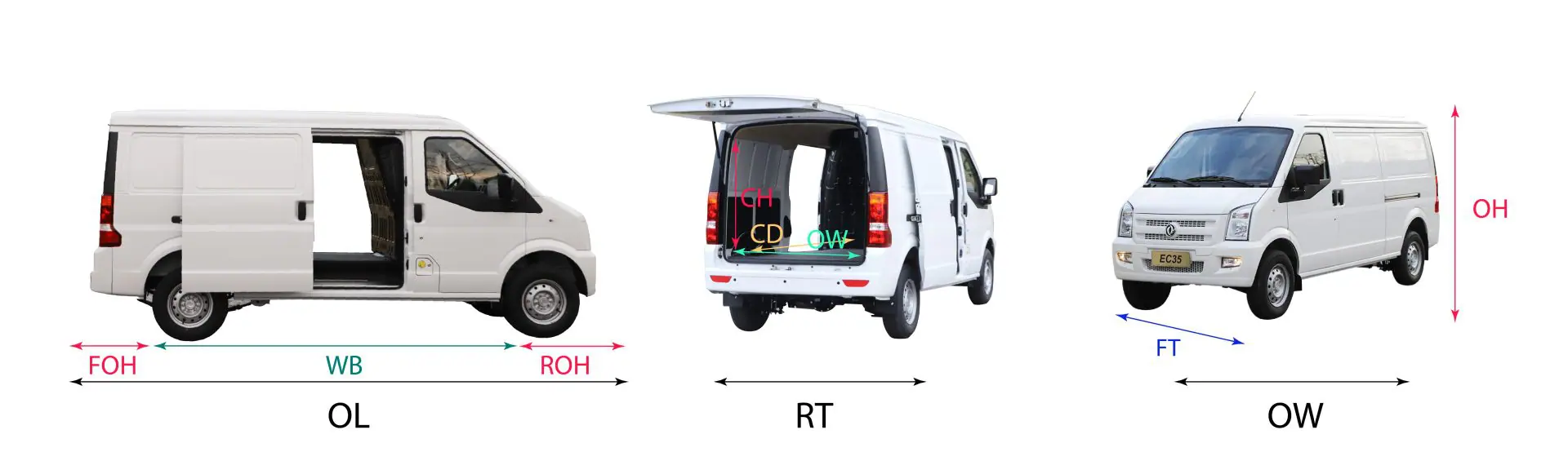

Wheelbase (WB)

3,050mm

Overall Length (OL)

4,500mm

Overall Width (OW)

1,680mm

Overall Height (OH)

1,985mm

Front Overhang (FOH)

570mm

Rear Overhang (ROH)

880mm

Front Track (FT)

1,435mm

Rear Track (RT)

1,435mm
