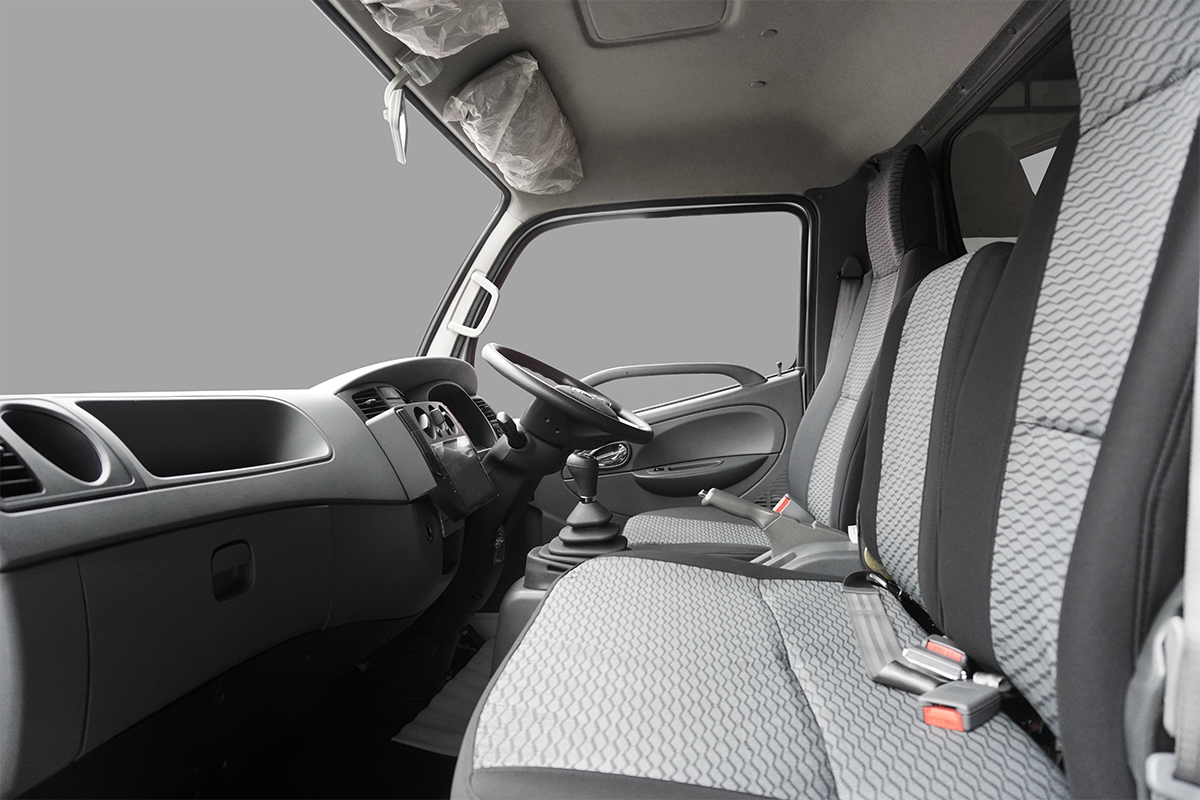

INTERIOR

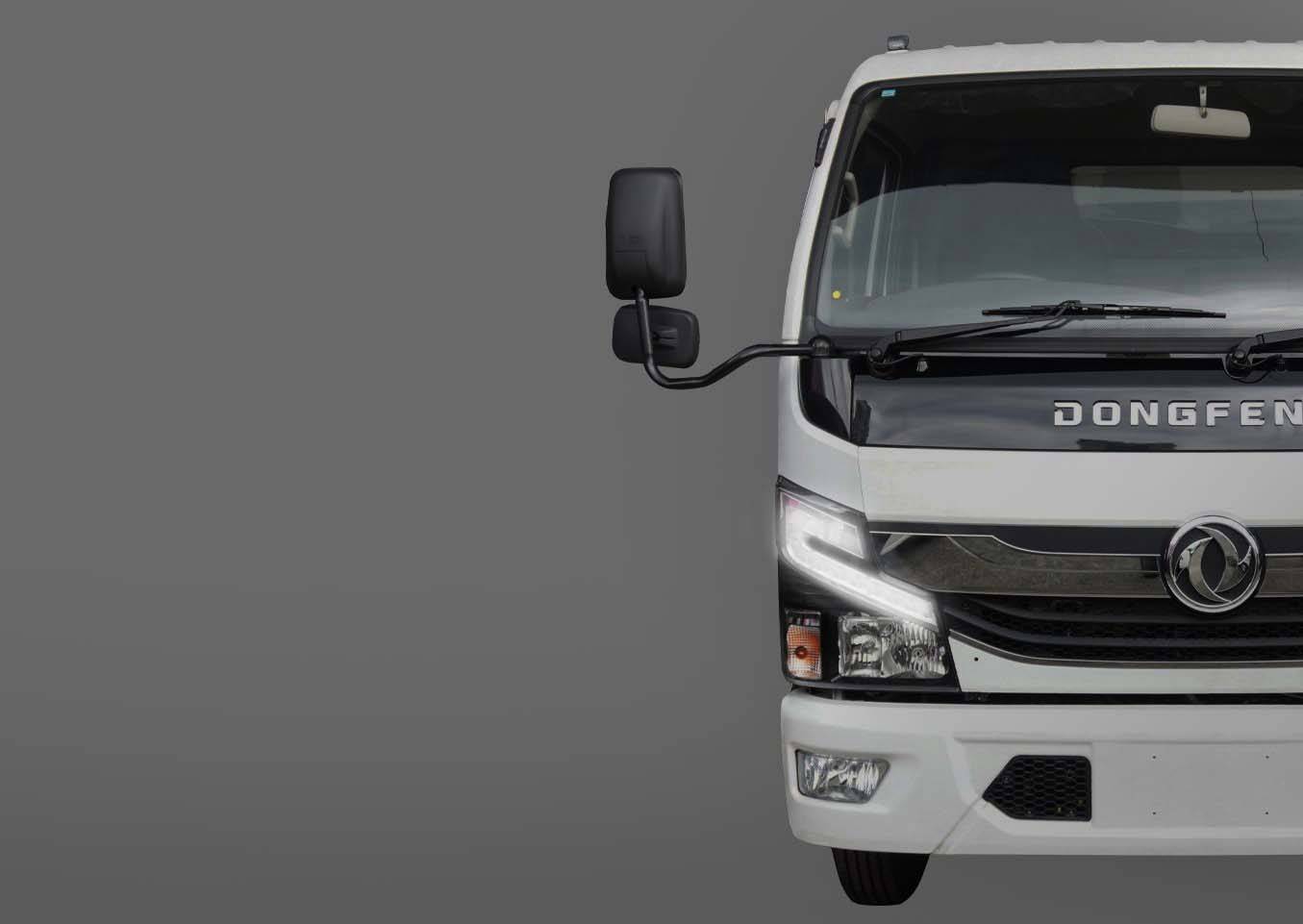

EXTERIOR
SAFETY AND PERFORMANCE
Cost Effective Maintenance
Hassle-free upkeep and easy-to-source spare parts keep your operations and logistics on track.
Safety Certified Cab Structure
Reinforced cab design offers enhanced structural protection and is proudly certified to ECE R29 standards for occupant safety.
Engine
Fuel-optimised powertrain that maximises on engine power while minimising operating costs.
Bangle Axle
Perfect balance of efficiency and durability with excellent load capacity and minimal rolling resistance for superior fuel efficiency.
Comprehensive Warranty
Your investment is safeguarded with a warranty that provides added security for your city delivery operations.
SPECIFICATION
Brand
DFAC
Model Code
EM98-101J
Configuration
4x2
GVW (Gross Vehicle Weight)
5,280kg
Maximum Speed
90km/H
Gradeability
31%
Curb Weight
1,730kg
Minimum Turning Radius
7.5m
Model
ISUZU JE493ZLQ4
Type
Diesel, in-line 4 cyl, Turbo Intercooler
Fuel Injection System
ECU Control Common Rail Injection
Displacement
2,771cc
Max. Output
80kW / 108PS @ 3,400rpm
Max. Torque
260Nm @ 2,000rpm
Emission Standards
Euro IV with EGR, DOC, POC
Form
Diaphragm Spring
Diameter
Φ265mm

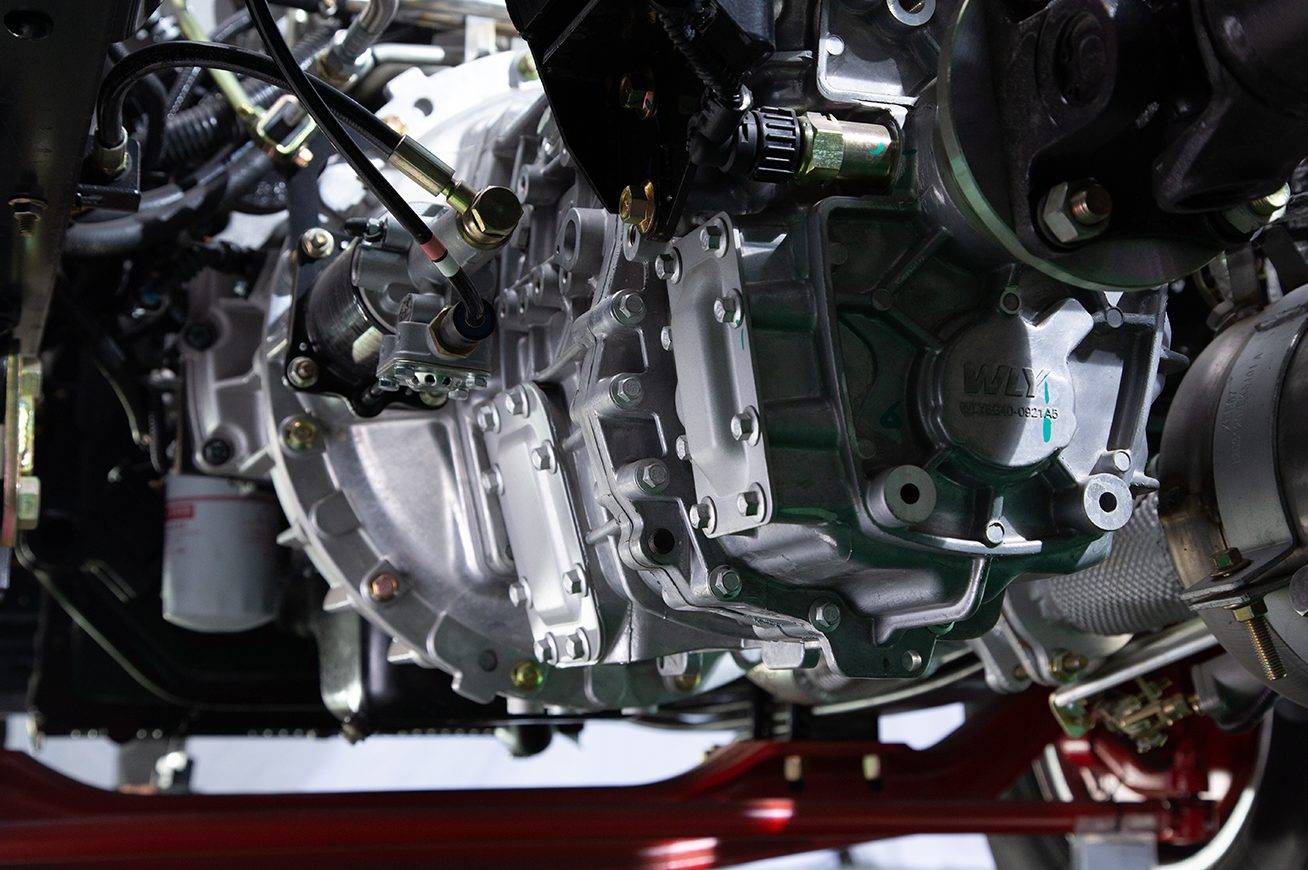

Model

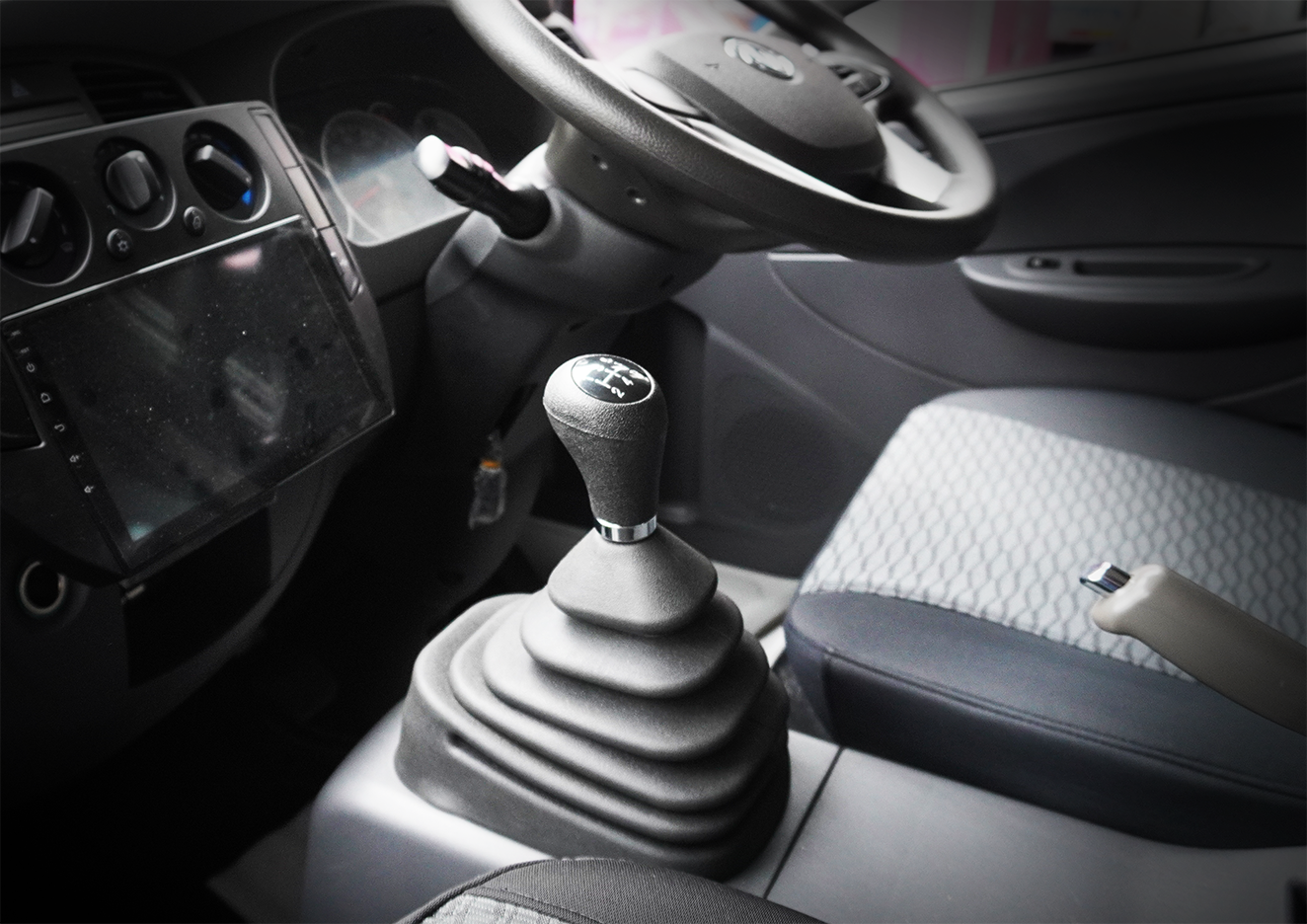

(WLY-5GT32) 5 Speed MT
Gear Ratio
1st
4.714
2nd
2.467
3rd
1.650
4th
1.000
5th
0.719
Reverse
4.505
Cross-sectional Dimensions (mm)
190 x 55 x 4.5
Width
760mm
Layer
Single Layer
Service Braking system
Dual-circuit hydraulic brakes with vacuum assist
Front Brake
Drum
Rear Brake
Drum
Auxiliary Brake system
Exhaust Brake
ABS (Antilock Braking System)
Yes
Parking Brake
Mechanical internal-expanding, acting on transmission output shaft
Front
Maker
BANGLE
Type
Reversed Elliot, I-Beam
Capacity
2,700kg
Rear
Maker
BANGLE
Type
Full Floating, Pressed welding housing, Hypoid Gear
Capacity
3,500kg
Ratio
4.875
Front
Type
Multi Leaf Spring with Dual Acting Shock Absorber
Number of Springs
6
Rear
Type
Multi Leaf Spring with Dual Acting Shock Absorber and Stabilizer Bar
Number of Springs
6 main springs + 5 helper springs
Wheel Type
6 Stud Tubeless Tires
Wheel Size
7.00R16-14PR
Rim Size
5.50F-16 Steel
Number of Tires
4 + 1
Cab Type
Single Row
Cab Width
1880mm
Tilting
Mechanical Type
Steering
Recirculating ball with Hydraulic power assistance
Power Window
Yes
Central Locking
Yes
Battery
12V, 100AH
Alternator
14V - 80A
Capacity
76L
Material
Steel
